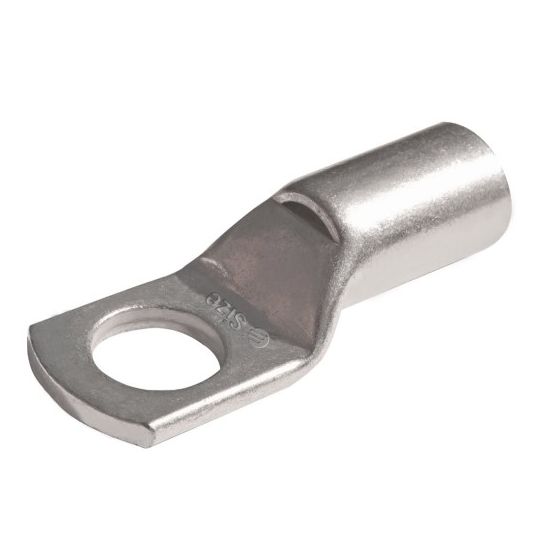

Cabac Crimp Lug Standard Copper 400mm M16 Stud 114mm OAL

Description

CABAC copper crimp lugs are made from 99.9% + cu high conductivity annealed copper which gives the best electrical properties possible. They are capable of withstanding a continuous operating temperature of 155 deg C, which is well above the temperature properties of most lugs. It is our recommendation that CABAC copper crimp lugs should be crimped with standard Australian tooling.

Key Specifications

Barcode (EAN-13)	9318674511687
SKU	CAACAL400-16
Brand	Cabac
Range Name	Long Barrel Long Palm Lugs
Product Type	Fret Lugs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Made from high conductivity annealed copper Crimped with CABAC and MSS Power standard tooling and copper dies Complies with AS4325.1
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CAL400-16
A-F Hex Die	28.1 mm
Barrel Length	44 mm
Barrel Type	Standard
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	400 mm
Crimping Die	ECW-H3D-400
Finish	Tin Electroplated
Inside Diameter	26.8 mm
Lug Length	52 mm
Lug Thickness	7.7 mm
Lug Width	50 mm
Number of Crimps	3
Number of Holes	1
Number of Strands	61/2.85
Overall Length	114 mm
Stud Size	16 mm
Temperature	155 deg C
Tensile Strength	200 MPa
