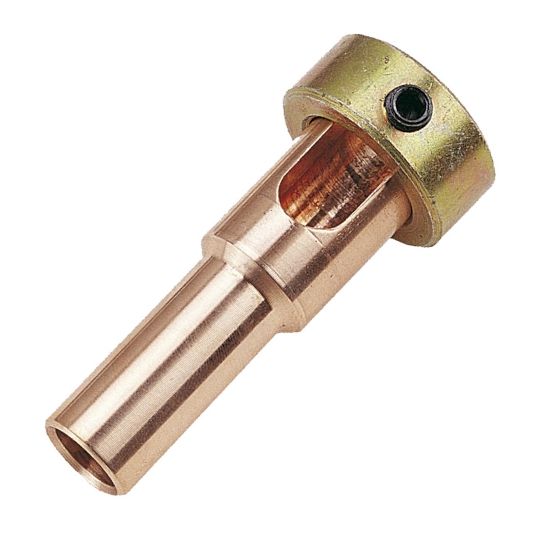

Cabac Switchgear Connector Copper 25mm 12mm Stem 72mm OAL

Description

Switchgear Connector, Copper, 25 mm Conductor, Number of Strands: 19/1.35, Switchgear Stem Diameter: 12 mm, 200 MPa, Ductile Rating: 40%, Resistivity: 1.738 µOhm cm, Conductivity: 99.7% IACS, A/F Hex Die: 7.7 mm, Crimping Die: HT130-C-25, Number of Crimps: 1, Annealed Copper Body, Conductive Material: Annealed Copper, Copper Barrel, Steel Collar, Unplated Finish, -55 to 155 deg C, 72 mm Overall Length, Inside Diameter 1: 7.5 mm, Inside Diameter 2: 12.5 mm

Key Specifications

Barcode (EAN-13)	9318674517818
SKU	CAACSC25/12K
Brand	Cabac
Range Name	Switchgear Connectors
Product Type	Switchgear Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for terminating copper conductors onto a 12 mm copper switchgear stem Clamping collar incorporating Allen head grub screw Clamping collar made from zinc plated steel
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CSC25/12K
A-F Hex Die	7.7 mm
Barrel Material	Copper
Body Material	Annealed Copper
Collar Material	Steel
Conductive Material	Annealed Copper
Conductivity	99.7% IACS
Conductor Size	25 mm
Crimping Die	HT130-C-25
Finish	Unplated
Ductile Rating	40%
Inside Diameter 2	12.5 mm
Inside Diameter 1	7.5 mm
Number of Crimps	1
Number of Strands	19/1.35
Overall Length	72 mm
Temperature	-55 to 155 deg C
Switchgear Stem Diameter	12 mm
Resistivity	1.738 µOhm/cm
Tensile Strength	200 MPa
