Cabac Light Dimmer Mechanism Push Button Universal 1.5A 230/240V ON/OFF 1-350W White

chevron-left
loader
Loading...

Description

chevron-down

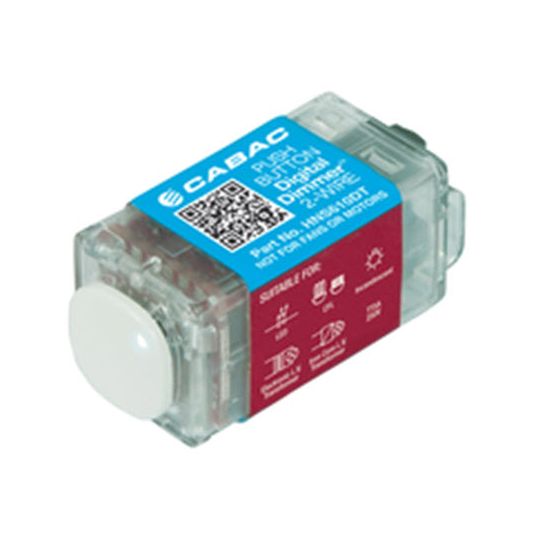

The S-Click HNS610DT is a push button digital dimmer and ON/OFF switch in one. Our rugged design features improved over current, over voltage and over temperature protection plus patented ripple tone rejection. Possible applications include dimmable LED and CFL lighting and multiway dimming. The push button dimmer range is incredibly easy to use. A quick tap will turn lights ON or OFF at the last set brightness. A long press ramps brightness up or down, alternating with each press until the desired brightness is reached. The HNS610DT is suitable for most dimmable lights, and is specifically designed for dimming LED lighting. The unit delivers deep dimming to zero on most lamps and multiway dimming is enabled using our HNS020RB Remote Button (sold separately). Dimmer and remote button are also available in a convenient dual switching kit (part no. HNS610DSDK).

Key Specifications

chevron-down
Barcode (EAN-13)
9318674097532
SKU
CAAHNS610DT
Brand
Cabac

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Pushbutton digital dimmer and On/Off switch in one perfect for dimmable LED
  • Suits HPM, Clipsal, Voltex and Traders wall plates
  • Multi way dimming and On/Off using S-click HNS020RB remote button
  • Wide range, deep dimming to zero on most lamp
  • Improved patent ripple tone rejection
  • Double tap when on makes light dim down to off over 30 minute
  • Double tap when off turns the light on at previous level and ramps to full brightness over 30 minute
  • Rugged over current, over voltage and temperature protection
  • Illuminated LED configuration
  • Retain setting after power loss
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product HNS610DT
Colour White
Control Type Pushbutton
Current 1.5 Amp
For Use With LED and CFL Lighting/Multiway Dimming
Frequency 50 Hz
Switch Function On/Off Button
Temperature 0 to 50 deg C
Voltage 230-240 Volt AC
Wattage 1-350 Watt
