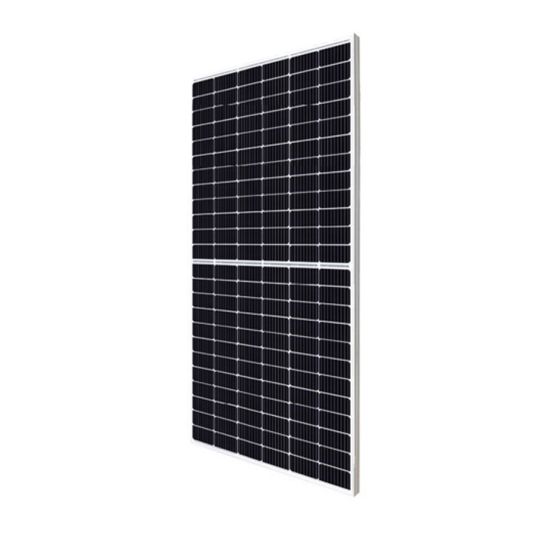

Canadian Solar HiKu Solar Panel 455W Mono-Crystalline Super High Power PERC 144 Cells Silver Frame 12 Years

Description

Solar Panel, CS3W Model, Mono-Crystalline, 144 Cell, 455 Watt, 41.3 Volt, 11.02 Amp, 49.3 Volt Open Circuit, 11.66 Amp Short Circuit, 20 Amp Max. Fuse Current, 1000/1500 Volt Max. System Voltage, 20.6% Efficiency, 0-5 Watt Power Tolerance, T4-PC-1/PV-KST4/XY-UR, PV-KBT4-EVO2/XY/UTXCFA4AM, UTXCMA4AM Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, IP68/3 with Bypass Diodes Junction Box, Silver Anodized Aluminium Alloy Frame Construction, 3.2 mm Tempered Glass Front Glass, -0.35%/deg C Temperature Coefficient, -40 to 85 deg C, 2108 mm Length, 1048 mm Width, 40 mm Height, 24.9 kg, IEC 61215, IEC 61730:VDE, CE, MCS, INMETRO, UL 1703:CSA

Key Specifications

SKU	CASCS3W-455MS
Brand	Canadian Solar
Range Name	HiKu
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	CS3W-455MS
Cell Type	Monocrystalline
Certifications	IEC 61215 IEC 61730 VDE CE MCS INMETRO UL 1703 CSA
Connector Type	T4-PC-1/PV-KST4/XY-UR; PV-KBT4-EVO2/XY/UTXCFA4AM; UTXCMA4AM
Efficiency	20.60%
Frame Construction	Silver Anodized Aluminum
Front Glass	3.2 mm Tempered Glass
Height	40 mm
Item Weight	24.9 kg
Junction Box	IP68/3 with Bypass Diodes
Max. Current	11.02 Amp
Max. Fuse Current	20 Amp
Max. Voltage	41.3 Volt
Model	CS3W
Max. System Voltage	1000/1500 Volt
Number Of Cells	144
Open Circuit Voltage	49.3 Volt
Operating Temperature	-40 to 85 deg C
Output Cables	4 mm (IEC)/12 AWG (UL)
Power Tolerance	0-5 Watt
Short Circuit Current	11.66 Amp
Temperature Coefficient	-0.35%/deg C
Warranty	12 Years
Wattage	455 Watt
Width	1048 mm
