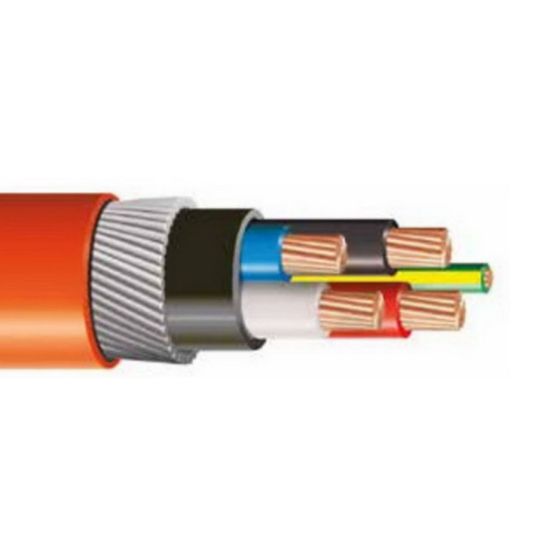

Circular Power Cable Armoured 4 Core & Earth 25mm 0.6/1kV Copper XLPE/Steel Wire Armour/PVC Orange
Loading...
Description
Circular Power Cable, Armoured, 4 Core & Earth, 25 mm, Plain Annealed Copper, 0.6/1 kV, 23.8 mm Bedding Diameter, 27 mm Diameter Over Armour, 30.6 mm Overall Diameter, 370 mm Bend Radius, Steel Wire Armour, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red Black White Blue Green Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835056419
|
|---|---|
| SKU |
CBL25/4CEXLPE-SWA
|
| Brand |
Generic
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199727 |
Downloads
