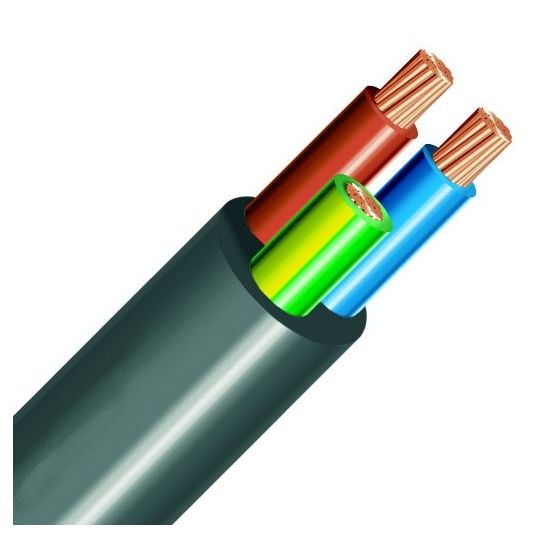

Ordinary Duty Flexible Cable 2 Core & Earth 1mm 250/440V Copper PVC/PVC Grey
Loading...
Description
Flexible Cable, Ordinary Duty, 2 Core & Earth, 1 mm, Class 5 Stranded Copper, 250/440 Volt, 7.2 mm Overall Diameter, 28.8 mm Bend Radius, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Light Blue Green/Yellow Cores, Grey Sheath, Static - 90 deg C Flexible - 60 deg C, AS/NZS 3191
Key Specifications
| Barcode (EAN-13) |
9310835926699
|
|---|---|
| SKU |
CBLF1.0/3CODGY
|
| Brand |
Generic
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20269639 |
| Bend Radius | 28.8 mm |
| Conductor Size | 1 mm |
| Conductor Type | Class 5 Stranded Copper |
| Core Colours | Brown/Blue/Green/Yellow |
| Insulation Material | V-90 PVC |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 7.2 mm |
| Sheath Colour | Grey |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 3191 |
| Temperature | Static: 90 deg C Flexible: 60 deg C |
| Voltage | 250-440 Volt |
