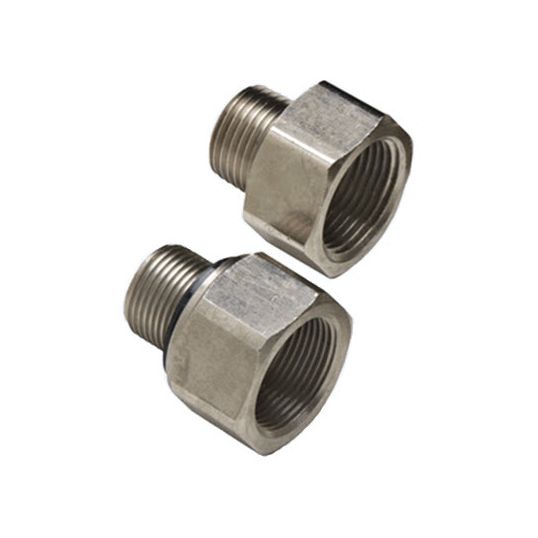

CCG Cable Gland Adaptor 2in NPT Male to M40 Female Nickel Plated Brass

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland Adaptor, 2 in NPT Male to M40 Female, Exde I/IIC/DIP, EExde I/II 2 GD, IP66/67/68, HDPE Gasket, Brass Body, Nickel Plated Finish, -20 to 95 deg C

Key Specifications

chevron-down
SKU
CCGAN200M040E
Brand
CCG
Range Name
EX Adaptors
Product Type
Grand Adaptors & Converters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Precision manufactured from high quality Brass
  • Converts mismatching threads to the required thread
  • For general industrial and hazardous area installations
  • The installer should check that the materials are suitable for the installation environment
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product AN200M040E
Finish Nickel Plated
From 2 inch NPT Male
Hazardous Area Rating Exde I/IIC/DIP EExde I/II 2 GD
IP Rating IP66/67/68
Temperature -20 to 95 deg C
To M40 Female
