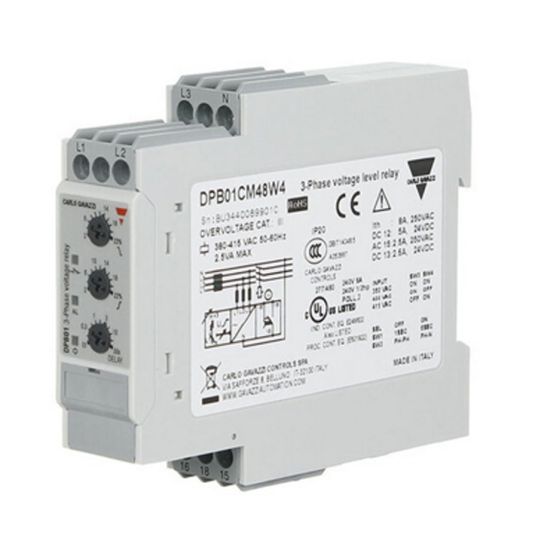

Carlo Gavazzi Phase Sequence Monitoring Relay 380 to 415VAC 3PH+N 1CO

Description

Phase Sequence Monitoring Relay, 380-415 Volt AC, 3 Phase Phase, 323-550 Volt AC, 1 Changeover Configuration, 100000 Cycles Electrical/30000000 Cycles Mechanical, Screw Terminal, DIN Rail Mounting, IP20, Noryl Body, Silver Tin Oxide (AgSnO2) Contact, -30 to 80 deg C, 83.5 mm Height, 22.5 mm Width, 99.5 mm Depth, 50/60 Hz

Key Specifications

SKU	CGVDPB01CM48W4
Brand	Carlo Gavazzi
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	DPB01CM48W4
Body Material	Noryl
Contact Configuration	1 Changeover
Contact Material	Silver Tin Oxide (AgSnO2)
Depth	99.5 mm
Height	83.5 mm
IP Rating	IP20
Measurement Range	323-550 Volt AC
Operating Cycles	100000 Cycles Electrical/30000000 Cycles Mechanical
Mounting Method	DIN Rail
Phase	3 Phase
Please Note	50/60 Hz
Temperature	-30 to 80 deg C
Terminal Connection	Screw
Voltage	380-415 Volt AC
Width	22.5 mm
