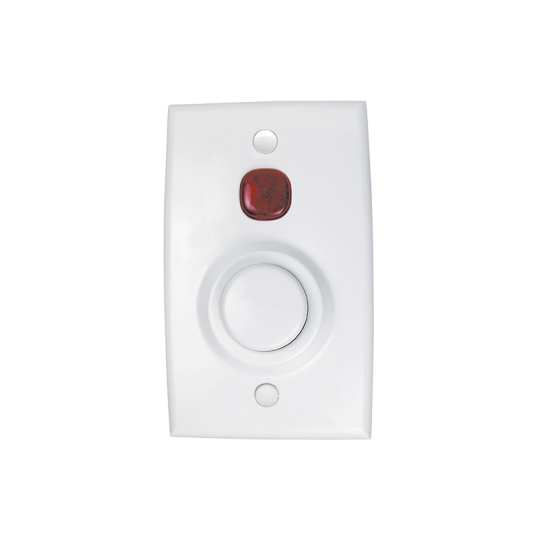

Clipsal Timer Switch Flush Mount Pneumatic Control Standard 1 Gang 10A 250V Horizontal/Vertical Neon Indicator

Description

Timer Switch Pneumatic Control Standard, 250 Volt AC, 10 Amp, 50/60 Hz, 1 Gang, Timer Range: 30 sec to 20 min, Pneumatic Operator, Mounting Centres: 84 mm, Terminal Capacity: 3 x 2.5 mm, IP56, Horizontal/Vertical, Flush Mount, Plastic, White Electric, Gloss Finish, 0 to 40 deg C, 117 mm Height, 77 mm Width, 35 mm Depth

Key Specifications

Barcode (EAN-13)	9311554058388
SKU	CLI319NWE
Brand	Clipsal
Range Name	Standard Range
Product Type	Timers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	319N-WE
Colour	White
Current	10 Amp
Depth	35mm
Finish	Gloss
Frequency	50/60 Hz
Height	117mm
IP Rating	IP56
Material	Plastic
Mounting Centres	84 mm
Mounting Method	Flush
Number Of Gangs	1 Gang
Operator Type	Pneumatic
Orientation	Horizontal/Vertical
Temperature	0 to 40 deg C
Terminal Capacity	3 x 2.5 sq-mm
Timer Range	30 sec to 20 min
Voltage	250 Volt
Width	77mm
