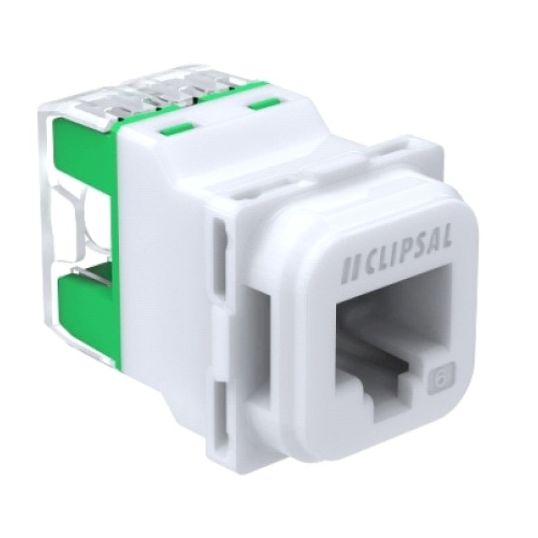

Clipsal Actassi S-110 Outlet Mechanism Cat6 UTP RJ45 8 Pin T568A/B Translucent

Description

Outlet Mechanism Cat6 UTP, 1000 Volt AC/DC, 1.5 Amp, AWG 24-AWG 23, 0.9-1.4mm Cable Diameter, RJ45 Connector, UTP Cable, 20 mOhm Contact Resistance, Initial: > 500 mOhm at 100 VDC Insulation Resistance, 8 Pins, 1-250 MHz Bandwidth, S-110 40 Mech Outlet Mechanism, Wiring Scheme: T568A/B, 750 Cycles Durability, Flammability: UL94-V0 Conforming to UL Listed, ABS + PC Housing, Copper Alloy and Gold Plated Contact Pin, Translucent,-10 to 60 deg C, 36mm Length, 22mm Height, 0.02 m Width

Key Specifications

SKU	CLI40RJ45SMA6CTN
Brand	Clipsal
Range Name	RJ45

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	20
UNSPSC Class	43223300
UOM	EA
Vendor Product	40RJ45SMA6C-TN
Cable Type	UTP
Colour	Translucent
Conductor Size	AWG 24-AWG 23
Connector	RJ45
Contact Resistance	20 mOhm
Current	1.5 Amp
Durability	750 Cycles
Flammability	UL94-V0 Conforming to UL Listed
Frequency Bandwidth	1-250 MHz
Height	22mm
Housing Material	ABS
Insulation Resistance	Initial: > 500 mOhm at 100 VDC
Number of Pins	8 Pin
Outlet Type	S-110 40 Mech
Temperature	-10 to 60 deg C
Width	0.02 m
Wiring Scheme	T568A/B
Voltage	1000 Volt AC/DC
