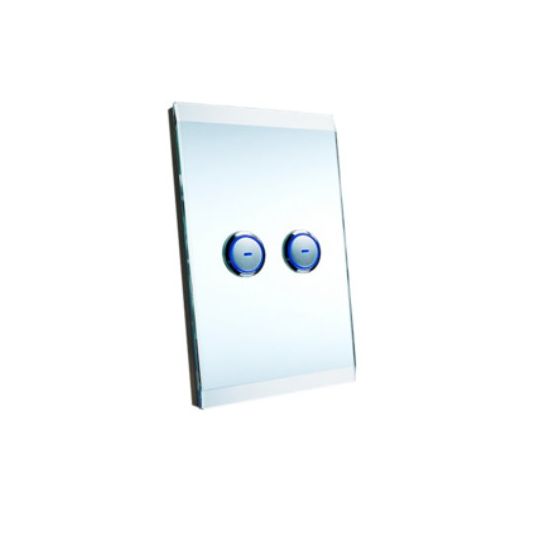

Clipsal C-Bus Saturn A Series Push Button Wall Switch 2 Gang Glass Fascia Saturn White Key Input Unit Learn Enabled

Description

Switch Flush Mounting Pushbutton Glass Fascia Programmable, 15-36 Volt DC, 22 mA, Number of Gangs: 2, Control Type: Push-Button, Mounting Centres: 84mm, Mounting Method: Wall Box, Connection Type: Terminal Block-0.2-1.3 mm, Vertical Orientation, Material: Glass, Plastic, Saturn White, Temperature: 0 to 45 deg C, 75mm Width, 116mm Height, 28mm Depth

Key Specifications

Barcode (EAN-13)	9311554584955
SKU	CLI5082NLGF
Brand	Clipsal
Product Type	Switches Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Impact-resistant glass fascia Programmable as ON/OFF toggle, dimmer, timer, scene control and custom functions Selectable blue and orange LED indicator on each button configured through C-Bus Toolkit software LED button indicators provide illumination and status feedback Night light feature Fallback level option to dim indicators at a set time after the last button press Mounted using standard mounting accessories Programmed via Learn mode or the C-Bus Toolkit software Draws 22mA from the C-Bus network C-Bus Learn Enabled
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	5082NL-GF
Colour	White
Connection Type	Terminal Block-0.2-1.3 sq-mm
Control Type	Button
Depth	28mm
Current	22 mA
Height	116mm
Material	Glass/Plastic
Mounting Centres	84mm
Mounting Method	Wall Box
Number Of Gangs	2 Gang
Orientation	Vertical
Temperature	0 to 45 deg C
Voltage	15-36 Volt DC
Width	75mm
