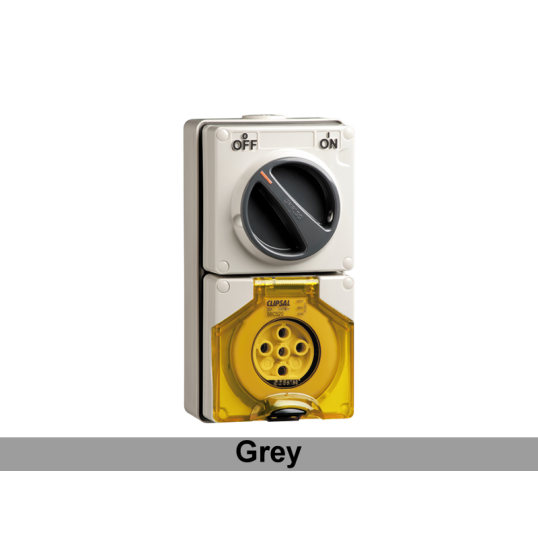

Clipsal Switch Socket Outlet Surface Mounting Weatherproof 3Ph 3P 20A 500V 5 Pin Round Grey IP66

Description

Switched Socket Outlet Weatherproof, 500 Volt, 20 Amp AC1, 50 Hz, 3 Phase Phase, 5 Pole, 5 Pin Round (3 + Neutral + Earth), Screw Connection, 2xM20/1xM25 Conduit Entry, 2.5-6 mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 204 mm Height, 101 mm Width, 108 mm Depth

Key Specifications

Barcode (EAN-13)	9311554198558
SKU	CLI56C520GY
Brand	Clipsal
Range Name	56 Series
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56C520-GY
Colour	Grey
Conduit Entry	2xM20/1xM25
Connection Type	Screw
Depth	108 mm
Frequency	50 Hz
Height	204 mm
IP Rating	IP66
Material	Polycarbonate
Mounting Method	Surface
Number Of Poles	5 Pole
Phase	3 Phase
Pin Configuration	5 Pin Round (3 + Neutral + Earth)
Temperature	-25 to 75 deg C
Terminal Capacity	2.5-6 mm
Voltage	500 Volt
Width	101 mm
