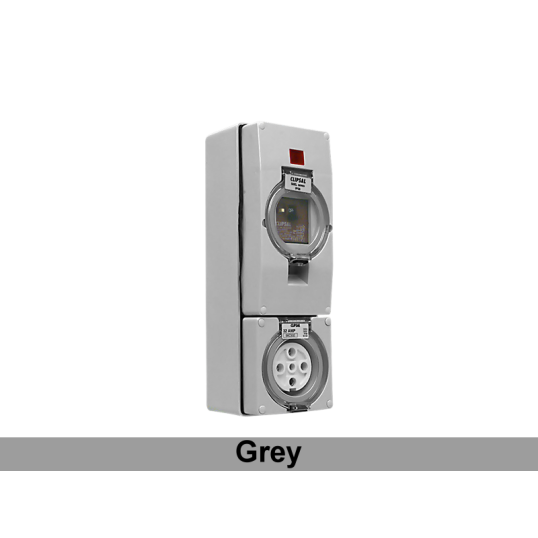

Clipsal Socket Outlet Surface Mounting RCD Protected 3Ph 32A 500V 5 Pin Round 30mA Grey IP66

$ClipsalNew\C0000845-GY.png$

Description

Socket Outlet RCD Protected, 500 Volt, 32 Amp, 3 Phase Phase, 5 Pole, 3 Gang, 5 Pin Round, 30 mA Trip Sensitivity, Screw Connection, 4-16 mm Cable Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 294 mm Height, 110 mm Width, 101 mm Depth

Key Specifications

Barcode (EAN-13)	9311554277062
SKU	CLI56C532RCGY
Brand	Clipsal
Range Name	56 Series
Product Type	Socket Outlets RCD Protected

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56C532RC-GY
Colour	Grey
Connection Type	Screw
Current	32 Amp
Depth	101 mm
Height	294 mm
Material	Polycarbonate
IP Rating	IP66
Mounting Method	Surface
Number Of Gangs	3 Gang
Pin Configuration	5 Pin Round
Number Of Poles	5 Pole
Phase	3 Phase
Temperature	-25 to 75 deg C
Trip Sensitivity	30 mA
Terminal Capacity	4-16 mm Cable
Voltage	500 Volt
Width	110 mm
