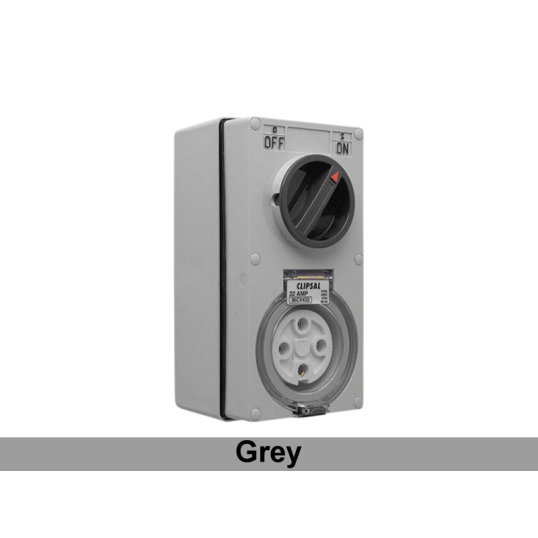

Clipsal 56 Series Switch Socket Outlet Surface Mounting Weatherproof 3Ph 32A 500V 4 Pin Round Grey IP66

Description

Switch Socket Outlet Surface Mounting Weatherproof, 3 Phase, 32 Amp, 500 Volt AC, 50 Hz, 4 Pole, 4 Pin Round, 3P + E, Screw, 2 x M20, 1 x M25, Terminal Capacity: 6 to 16 mm, Surface Mount, IP66, Polycarbonate Cover, Phosphor Bronze Pin, Grey, 204 mm Height, 101 mm Width, 108 mm Depth, -25 to 75 deg C

Key Specifications

Barcode (EAN-13)	9311554202965
SKU	CLI56CV432GY
Brand	Clipsal
Range Name	56 Series
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56CV432-GY
Colour	Grey
Conduit Entry	2 x M20/1 x M25
Connection Type	Screw
Current	32 Amp
Depth	108 mm
Frequency	50 Hz
Height	204 mm
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	4 Pole
Phase	3 Phase
Pin Configuration	4 Pin Round (3 + Earth)
Temperature	-25 to 75 deg C
Terminal Capacity	6-16 mm
Voltage	500 Volt
Width	101 mm
