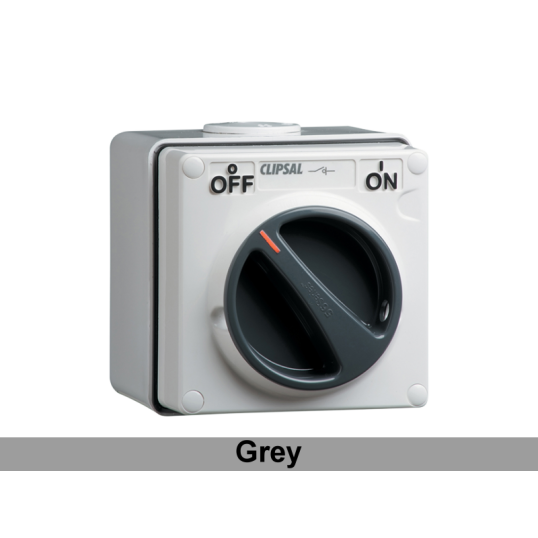

Clipsal Isolating Switch Surface Mounting Weatherproof 4P 32A 500V Grey IP66
Loading...
Description
Isolator Switch Weatherproof, 500 Volt, 32 Amp, 50 Hz, 1 Gang, 4 Pole, ON/OFF, Rotary, Screw Connection, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 107 mm Height, 101 mm Width, 108 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554072186
|
|---|---|
| SKU |
CLI56SW432GY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SW432-GY |
| Colour | Grey |
| Connection Type | Screw |
| Current | 32 Amp |
| Frequency | 50 Hz |
| Depth | 108 mm |
| Height | 107 mm |
| IP Rating | IP66 |
| Legend | ON/OFF |
| Material | Polycarbonate |
| Method of Operation | Rotary Knobs |
| Mounting Method | Surface |
| Number Of Gangs | 1 Gang |
| Number Of Poles | 4 Pole |
| Voltage | 500 Volt |
| Width | 101 mm |
| Temperature | -25 to 75 deg C |
