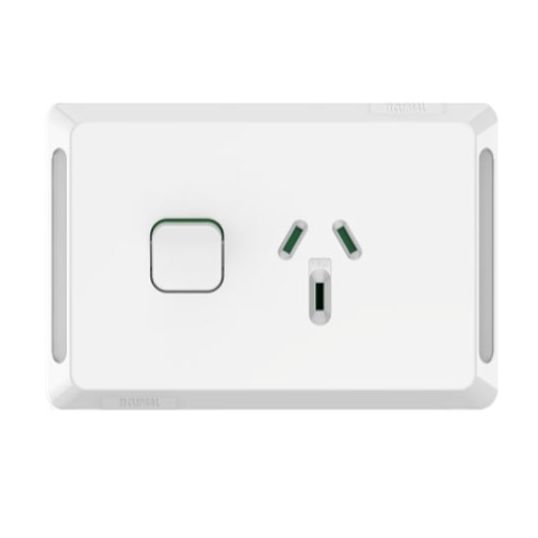

Clipsal Pro Series Single Power Point Flush Mount 10A 250V 2P+E Earth Pin Horizontal White

Description

GPO Switched Outlet, 250 Volt Switch, 10 Amp, 50 Hz, Earth, 2 + Earth Pole, 1 Gang, Horizontal Orientation, Flush Mounting, 3 Screw Connection, 1 x 2.5 to 4 x 2.5 sq-mm Terminal Capacity, Polypropylene/Polyoxymethylene/ABS, White, Glossy, 0 to 45 deg C, 78 mm Height, 116 mm Width, 32 mm Depth

Key Specifications

Barcode (EAN-13)	9311554803964
SKU	CLIP3015XW
Brand	Clipsal
Range Name	Pro Series
Product Type	GPO Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Impact protection rating of IK08 to withstand up to 5 joules of impact; common in high traffic areas, like schools and commercial spaces Clear window protects the circuit identification labels Circuit identification codes enables easy recognition Secure skins The gloss finish means the switch is easy to keep clean, and the green indicator strip means you can see from a distance when the switch is turned on
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	P3015-XW
Colour	White
Connection Type	3 Screw
Current	10 Amp
Depth	32 mm
Finish	Gloss
Frequency	50 Hz
Height	78 mm
Material	Polypropylene/Polyoxymethylene/ABS
Mounting Method	Flush
Number Of Gangs	1 Gang
Number Of Poles	2 Pole + Earth
Orientation	Horizontal
Pin Configuration	Earth
Temperature	0 to 45 deg C
Terminal Capacity	1 x 2.5 to 4 x 2.5 sq-mm
Width	116 mm
