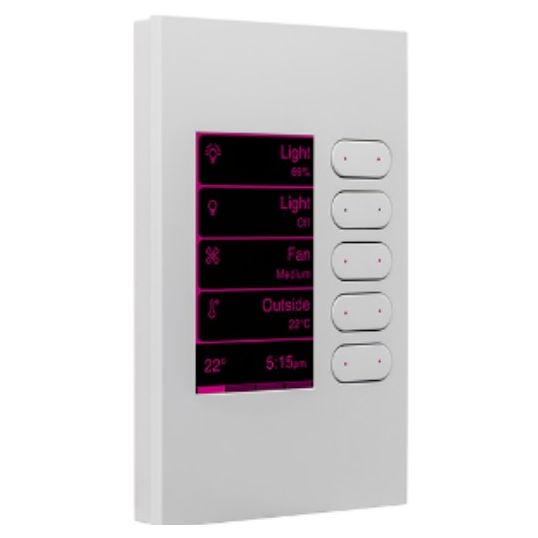

Clipsal C-Bus Saturn Zen Series Enhanced DLT Wall Switch 5 Key A Series Zen White
Loading...
Description
Wall Switch, 15-36 Volt DC, 32 mA, 5 x Pushbutton Dual-Action Control, 2 Wire, Fly Leads Connection, IP20, Wall Mounting, Plastic, White, 5 to 45 deg C, 83 mm Width x 123 mm Height x 35 mm Depth, 2.8 in Colour TFT Display
Key Specifications
| SKU |
CLIR5045EDLWZW
|
|---|---|
| Brand |
Clipsal
|
| Range Name |
Saturn Zen Series
|
| Product Type |
Switch Mechanisms
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | R5045EDLW-ZW |
| Colour | White |
| Connection Type | Fly Leads |
| Control Type | 5 x Pushbutton Dual-Action |
| Current | 32 mA |
| Dimensions | 83 mm Width x 123 mm Height x 35 mm Depth |
| IP Rating | IP20 |
| Mounting Method | Wall |
| Material | Plastic |
| Number of Wires | 2 Wires |
| Please Note | 2.8 in Colour TFT Display |
| Voltage | 15-36 Volt DC |
| Temperature | 5 to 45 deg C |
