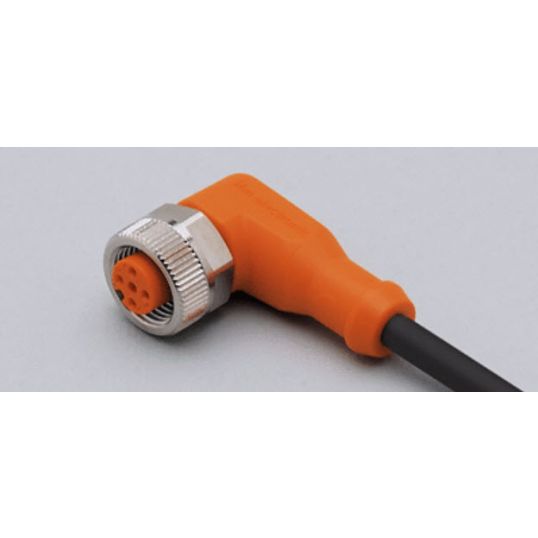

Efector M12 5 Pin Sensor Connector Angled Socket 5m L <250V/<300VDC

Description

Sensor Connector, <250 Volt AC/<300 Volt DC, 4 Amp, 5 mtr, Angled Socket 5 Pin Connection, M12x1 Connection, IP65/67/68/69K, TPU, -25 to 90 deg C, 15.5 mm Width, 26.5 mm Height, 36.5 mm Depth

Key Specifications

SKU	EFFEVC005
Brand	Efector

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Resistant to oils and coolants Permanent, reliable sealing even when mounted without tools High protection rating for the requirements of harsh industrial environments Vibration and shock resistant thanks to coupling ring with locking mechanism Mechanical end stop to protect the O-ring from destruction
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	EVC005
Connection Size	M12x1
Cable Size	5 mtr
Connection Type	Angled Socket 5 Pin
Current	4 Amp
Height	26.5 mm
Depth	36.5 mm
Material	TPU
IP Rating	IP65/67/68/69K
Product Type	simple
Temperature	-25 to 90 deg C
Voltage	<250 Volt AC/<300 Volt DC
Width	15.5 mm
