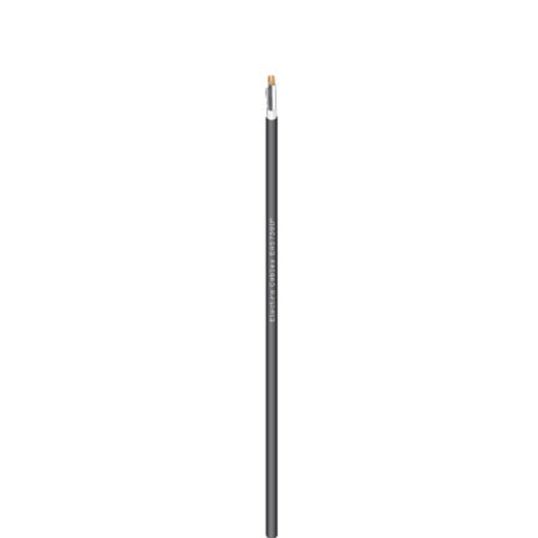

Electra 0.5mm 6 Pair Instrumentation Cable Unarmoured Individual & Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.5 mm, Annealed Copper, 240 Volt, 6 Pair, 7/0.3 mm Strands, Individual & Overall Screened Screen, 12.3 mm Overall Diameter, 0.5 mm Insulation Thickness, 1.4 mm Sheath Thickness, Aluminum/Polyester Mylar Tape Screen, V-90HT or V-75 PVC Insulation, 5V-90 or 4V-75 PVC Sheath, Black Sheath, AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCEIAS7306P
Brand	Electra
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	EIAS7306P
Voltage	240 Volt
Conductor Size	0.5 mm
Conductor Type	Annealed Copper
Screen Format	Individual & Overall Screened
Sheath Colour	Black
Overall Diameter	12.3 mm
Number of Pairs	6 Pair
Screen Material	Aluminium/Polyester Mylar Tape
Insulation Material	V-90HT or V-75 PVC
Insulation Thickness	0.5 mm
Sheath Material	5V-90 or 4V-75 PVC
Sheath Thickness	1.4 mm
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	7/0.3 mm
