Electra 4mm Building Wire Blue 100mtr
Loading...
Description

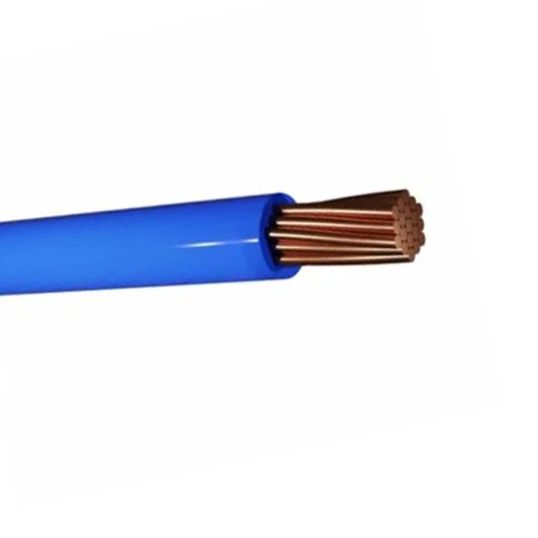

Building Wire, Single Insulated, 1 Core, 4 mm, Plain Annealed Copper, 0.6/1 kV, 30 Amp, 7/0.85 mm Strands, 4.6 mm Overall Diameter, 1 mm Insulation Thickness, V-90HT PVC Insulation, Unsheathed, Blue Insulation, 105 deg C, AS/NZS 5000.1
Key Specifications
| SKU |
ELCSR1040V-BLU
|
|---|---|
| Brand |
Electra
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | SR1040V-BLU |
| Conductor Type | Annealed Copper |
| Current | 30 Amp |
| Insulation Colour | Blue |
| Insulation Thickness | 1 mm |
| Insulation Material | V-90HT PVC |
| Overall Diameter | 4.6 mm |
| Stranding | 7/0.85 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 105 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 4 mm |
