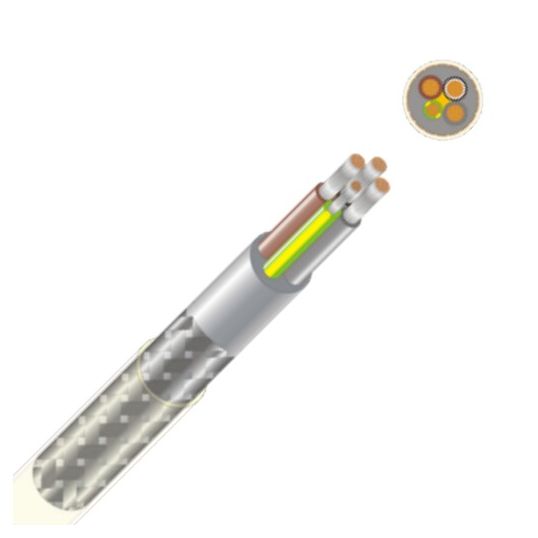

Electra Flexible VSD/EMC Cable Screened 3 Core & Earth 2.5mm 0.6/1kV Tinned Copper PVC/TACBS/PVC Clear

Description

VSD/EMC Cable, 2.5 mm, Class 5 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 49/0.25 mm Strands, 15 mm Overall Diameter, 2.5 mm Earth Conductor, 0.8 mm + 0.8 mm Earth Insulation Thickness, 0.8 mm Sheath Thickness, Tinned Copper Braid Screen, Brown/Blue/Black/Green/Yellow Core, V-90HT PVC Insulation, PVC Sheath, Clear Sheath, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	ELCVSD3025E-100
Brand	Electra
Product Type	VSD/EMC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	VSD3025E-100
Conductor Size	2.5 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Brown/Blue/Black/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Material	V-90HT PVC
Insulation Thickness	0.8 mm + 0.8 mm Earth
Number of Cores	3 Core + Earth
Overall Diameter	15 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Sheath Thickness	0.8 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Stranding	49/0.25 mm
Voltage	0.6-1 kV
