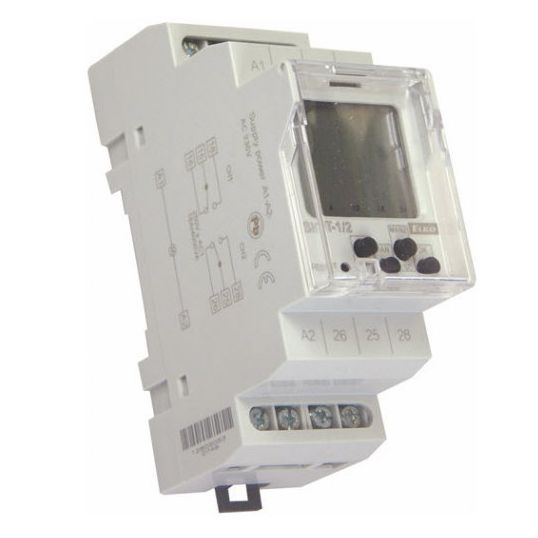

Elko Time Switch Digital 24 Hour and 7 Day 2 Channel 12/240VAC/DC 16A 2CO DIN Rail Mount 35mm

Description

Time Switch Analogue 24 Hour & 7 Day, 12-240 Volt, 16 Amp, 50/60 Hz, 2 Module, 2 Channel, 2 Changeover Contact Type, DIN Rail Mounting, 90 mm Height x 35 mm Width x 64 mm Depth

Key Specifications

Barcode (EAN-13)	8595188121163
SKU	ELOSHT-1/2
Brand	Elko
Product Type	Time Switches Analogue

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	This time switch clock SHT is used to control various appliances in real time; daily, weekly, monthly and yearly mode Switching: according the program (AUTO)/constantly manually, manually to next program change/random (CUBE) Holiday program option to choose an interval when the device doesn't switch according to the standard program, but will be block during that time Automatic conversion summer/winter time Sealable cover of front panel, easy controlling via 4 buttons Cyclic output Pulse output
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	SHT-1/2
Contact Type	2 Changeover
Dimensions	90 mm Height x 35 mm Width x 64 mm Depth
Frequency	50/60 Hz
Modules	2 Module
Number of Channels	2 Channel
Mounting Method	DIN Rail
Switching Capacity	16 Amp
Voltage	12-240 Volt
