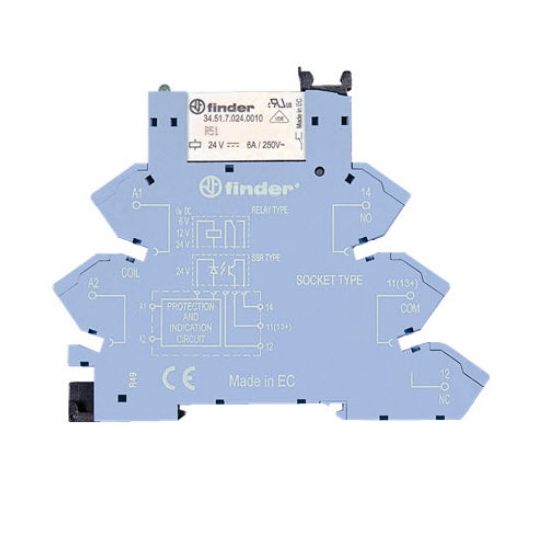

Finder Interface Relay DIN Rail Mounting 1CO 6A 24VAC/DC

Description

Interface Relay, 400 Volt AC, 24 Volt AC/DC Coil Voltage, 6 Amp AC15, 1 Changeover Configuration, 5 ms Operate/6 ms Release Operating Time, 60000 Cycles, Screw/Screwless Terminal, DIN Rail Mounting, IP20, AgNi Contact, -40 to 55 deg C, 93.6 mm Height, 6.2 mm Width, 72.5 mm Depth

Key Specifications

Barcode (EAN-13)	8012823231969
SKU	FID386124VACDC
Brand	Finder
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	386124VACDC
Contact Material	AgNi
Contact Configuration	1 Changeover
Mounting Method	DIN Rail
Depth	72.5 mm
IP Rating	IP20
Height	93.6 mm
Operating Coil Voltage	24 Volt AC/DC
Operating Cycles	60000 Cycles
Operating Time	5 ms Operate/6 ms Release
Temperature	-40 to 55 deg C
Terminal Type	Screw/Screwless
Voltage	400 Volt AC
Width	6.2 mm
