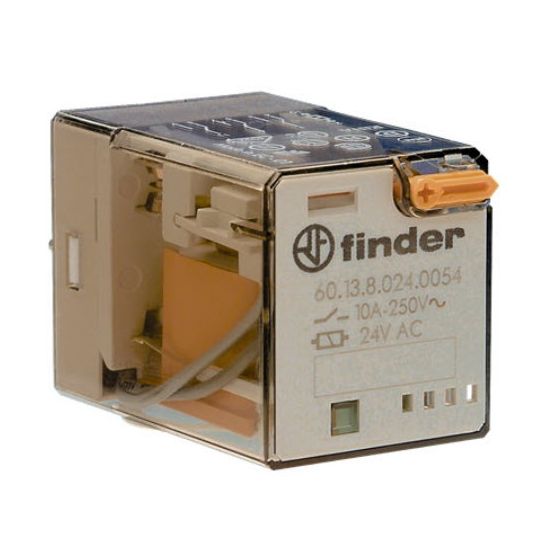

Finder General Purpose Relay Plug-In Mount 3P Double THrow 10A 24V 11 Pin Round

$Finder\Finder_601324VACRLY.jpg$

Description

General Purpose Relay, 250 Volt AC, 240 Volt AC Coil Voltage, 10 Amp, 0.37 kW, 11 Pin Round, 3 Pole, Double Throw Configuration, 8500 Ohm, 4 ms Breaking/11 ms Making Operating Time, 200000 Cycles, Plug-In Mounting, Silver Nickel (Ag/Ni) Contact, -40 to 70 deg C, 36.4 mm Height, 32.5 mm Width, 54.2 mm Depth, With PB plus/LED plus/Mechanical Indicator

Key Specifications

Barcode (EAN-13)	8012823047737
SKU	FID60.1324VACRLY
Brand	Finder
Range Name	Series 60
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	601324VACRLY
Contact Configuration	Double Throw
Contact Material	Silver Nickel (Ag/Ni)
Depth	54.2 mm
Height	36.4 mm
Current	10 Amp
Number Of Poles	3 Pole
Mounting Method	Plug-In
Operating Coil Voltage	240 Volt AC
Operating Cycles	200000 Cycles
Operating Time	4 ms Breaking/11 ms Making
Pin Configuration	11 Pin Round
Please Note	With PB plus/LED plus/Mechanical Indicator
Power Rating	0.37 kW
Resistance	8500 Ohm
Temperature	-40 to 70 deg C
Width	32.5 mm
Voltage	250 Volt AC
