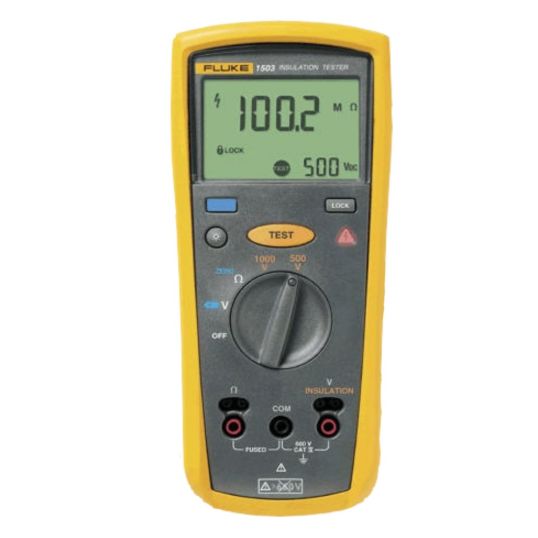

Fluke Insulation Resistance Meter 600VAC/DC 0.01-2000Mohm

Description

Insulation Resistance Meter, 600 Volt AC/DC, 0.01 to 2000 MOhm, Four AA Batteries, -20 to 55 deg C, Backlit Display, 0.1 Volt Resolution, +/-(2% + 3) Accuracy, 20.3 cm Length x 10 cm Width x 5 cm Height

Key Specifications

Barcode (EAN-13)	095969288668
SKU	FLU1503
Brand	Fluke

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A rugged, compact insulation resistance tester for residential and co mmercial electricians Includes live circuit detection to prevent insulation test if voltage >30 V is detected Includes auto-discharge of capacitive voltage for added user protection Provides lo-Ohms earth-bond continuity Simplifies repetitive or hard-to-reach testing with the remote test probe Saves battery power with auto power off Presents results on a large, backlit display Features CAT IV 600 V overvoltage category rating Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	FLU1503
Dimensions	20.3cm Length x 10cm Width x 5cm Height
Display Type	Backlit
Power Supply	4 x AA
Product Type	Insulation Resistance Meter
Resistance	0.01/2000 MOhm
Temperature	-20 to 55 deg C
Voltage	600 Volt AC/DC
