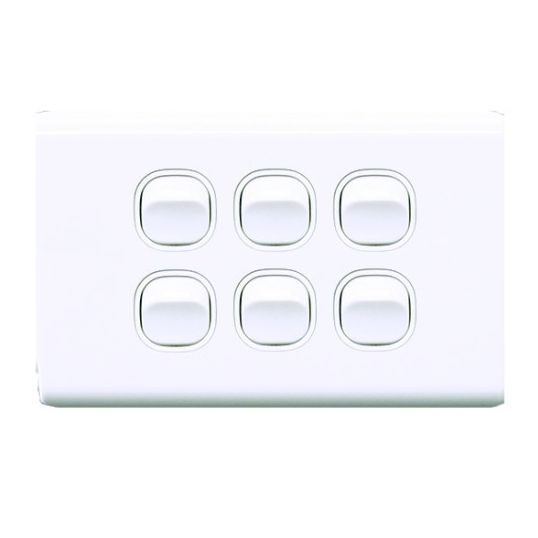

GSME Switch Flush Mount Standard 6 Gang 20A/16AX 250V 2 Way Horizontal White

$GSME\GSME_LESW6G.jpg$

Description

Switch Standard, 250 Volt, 20 Amp/16 AX, 6 Gang, Horizontal, Mounting Centres: 84 mm, Flush Mount, Terminal Capacity: 4 x 1.5 mm, 2 Way, Screw Connection, UV-Stabilized Polycarbonate, White, 72.7 mm Height, 114.8 mm Width, 25.4 mm Depth

Key Specifications

Barcode (EAN-13)	9349703000568
SKU	GSMLESW6G
Brand	GSME Trader
Range Name	Leopard
Product Type	Switches Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 4 x 1.5 sq-mm cabling with 4.1 mm bore Slotted head screws for the terminals Uses cat flap screw covers for IP rated mounting screws Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
Standard Pack Size	5
UNSPSC Class	39122200
UOM	EA
Vendor Product	LESW6G
Colour	White
Connection Type	Screw
Current	20 Amp/16 AX
Depth	25.4 mm
Height	72.7 mm
Material	UV-Stabilized Polycarbonate
Mounting Centres	84 mm
Mounting Method	Flush
Number Of Gangs	6 Gang
Number Of Ways	2 Way
Orientation	Horizontal
Terminal Capacity	4 x 1.5 sq-mm
Voltage	250 Volt
Width	114.8 mm
