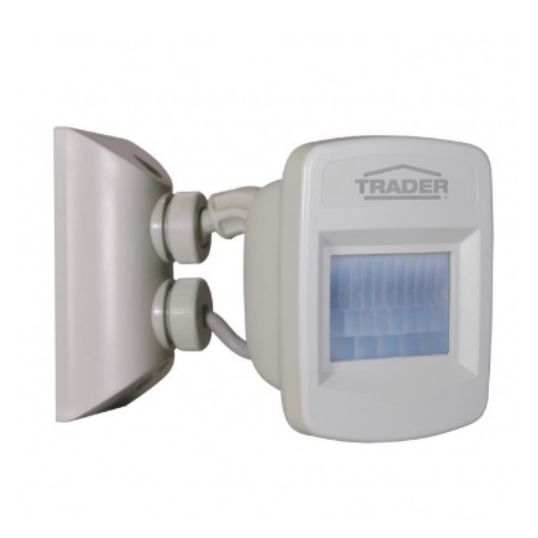

GSME Arctic Owl PIR Sensor Outdoor 110deg IP66 Beige

Description

PIR Sensor, 220-240 Volt, Incandescent: 10 Amp/Inductive: 5 Amp, Incandescent: 2400 Watt/Inductive: 1200 Watt, PIR Sensing Method, 18 mtr Sensing Range, 110 deg Sensing Beam, 5 sec-10 min Response Time, <2 lux, IP66, Beige

Key Specifications

Barcode (EAN-13)	9349703017047
SKU	GSMOWPIROD
Brand	GSME Trader
Range Name	Arctic Owl
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Sensor uses passive infrared technology Can be manually overridden with built-in override function Suitable for installing on walls and ceiling both interior and exterior Fits standard mounting blocks using 84 mm centres 3-wire design (active, neutral, sensor load) for greater reliability Relay in circuit allows for loads up to 2400 Watt (incandescent) Easy mounting and adjustment Easy sensing, light level and on time adjustment LED compatible Minimum load <10Watt
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	OWPIROD
Current	Incandescent: 10 Amp/Inductive: 5 Amp
Colour	Beige
IP Rating	IP66
Lux	<2 lux
Response Time	5 sec-10 min
Sensing Beam	110 deg
Sensing Method	PIR
Sensing Range	18 mtr
Voltage	220-240 Volt
Wattage	Incandescent: 2400 Watt/Inductive: 1200 Watt
