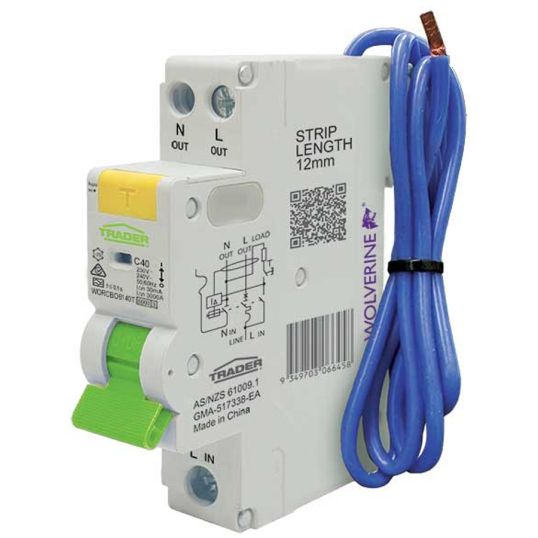

GSME Trader RCBO Type A 230-240 VAC 40 Amp 6 kA 2 Pole 30 mA IP20 1 Module

$GSME\GSME_WORCBO6140T.JPG$

Description

Wolverine Din Rail mounted RCBOs (WORCBO series) offer fast and flexible installation for safety of personal and equipment protection applications in domestic and small commercial environments as well as circuit protection up to 6kA. Being fully certified in accordance with standard AS/NZS 61009-1 and IEC 61009-1 (Residual current circuit breakers for household and similar purposes). Providing protection against short circuit, overcurrent situations and earth faults that may occur in equipment as well as reduce the effects of electric shock and save lives by cutting off supply if they have measured an imbalance between the live and neutral cables above the sensitivity level where current flowing in the live and neutral cables becomes imbalanced from current flowing to earth.

Key Specifications

Barcode (EAN-13)	9349703066458
SKU	GSMWORCBO6140T
Brand	GSME Trader
Range Name	Wolverine
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Earth leakage protection Overload and short circuit protection Non-Line / Load sensitive allows the electricians to either “input from the top and output from the bottominch or “input from the bottom and output from the topinch without issue and this provides greater versatility and ease of installation Compact SLIM module design, allows for more RCDs/MCBs to be installed in the one enclosure True Double Pole Disconnection in a Single Module RCBO Double pole switching for complete isolation of faulty circuits
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	WORCBO6140T
Connection Type	Cable/U-Type Busbar/Pin-Type Bubsbar
Current	40 Amp
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Modules	1 Module
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Please Note	With Neutral Tail
Temperature	-21 to 40 deg C
Terminal Connection	25 sq-mm Busbar
Trip Characteristic	C Curve
Voltage	230-240 Volt AC
Trip Sensitivity	30 mA
