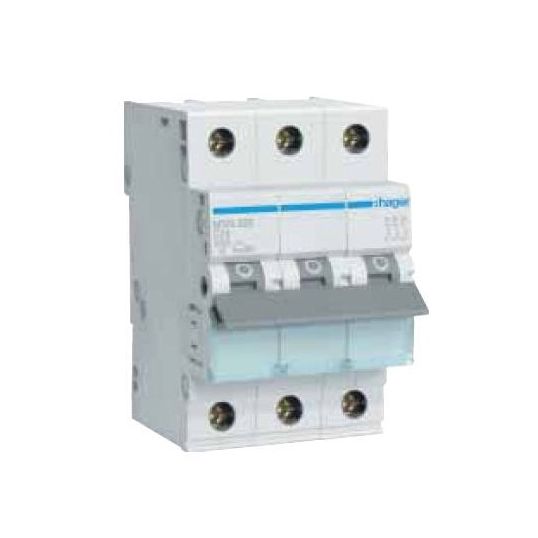

Hager Miniature Circuit Breaker C Curve 32Amp 6 kA 3Pole 3Module 54mm DIN Rail Mount
Loading...
Description
Miniature Circuit Breaker C Curve, 415 Volt, 32 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 3 Module 54 mm, 3 Pole, 2.8 Nm Tightening Torque, Screw Terminal, 4000 Cycles Electrical Life, IP20, DIN Rail Mounting, 25 to 70 deg C, 83 mm Height, 52.5 mm Width, 70 mm Depth
Key Specifications
| Barcode (EAN-13) |
3250614323614
|
|---|---|
| SKU |
HAGMSN332
|
| Brand |
Hager
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | MSN332 |
| Current | 32 Amp |
| Depth | 70 mm |
| Electrical Life | 4000 Cycles |
| Frequency | 50/60 Hz |
| Height | 83 mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20 |
| Modules | 3 Module 54 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Temperature | 25 to 70 deg C |
| Terminal Type | Screw |
| Tightening Torque | 2.8 Nm |
| Voltage | 415 Volt |
| Width | 52.5 mm |
