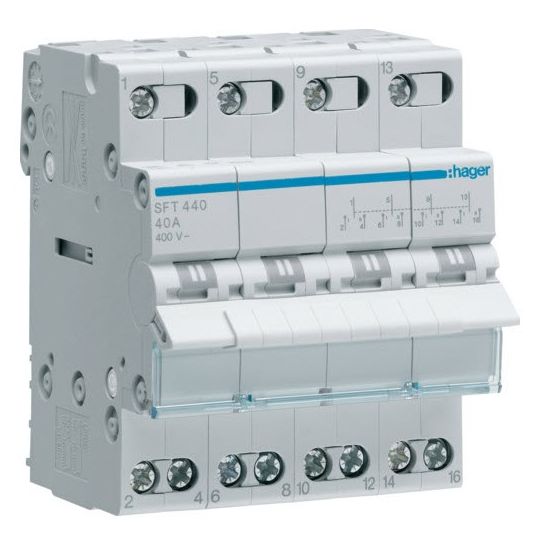

Hager Changeover Switch 4P 40A AC21 230/400V DIN Rail Mount IP20
Loading...
Description
Changeover Switch DIN Mount, 400 Volt, 40 Amp AC21 at 230/400 Volt AC21, 8.4 Watt, 50/60 Hz, 4 Pole, Manual Actuator, 1.5/10 sq-mm Flexible/1.5/16 sq-mm Rigid, DIN Rail Mounting, Screw Connection, IP20, -20 to 50 deg, 83 mm Height, 70 mm Width, 71 mm Depth, Centre Off Changeover Top
Key Specifications
| Barcode (EAN-13) |
3250615510945
|
|---|---|
| SKU |
HAGSFT440
|
| Brand |
Hager
|
| Product Type |
Changeover Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | SFT440 |
| AC21 Rating | 40 Amp AC21 at 230/400 Volt |
| Actuator | Manual |
| Conductor Size | 1.5/10 sq-mm Flexible - 1.5/16 sq-mm Rigid |
| Connection Type | Screw |
| Depth | 71 mm |
| Frequency | 50/60 Hz |
| Height | 83 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail |
| Number Of Poles | 4 Pole |
| Please Note | Centre Off Changeover Top |
| Power Rating | 8.4 Watt |
| Temperature | -20 to 50 deg |
| Voltage | 400 Volt |
| Width | 70 mm |
