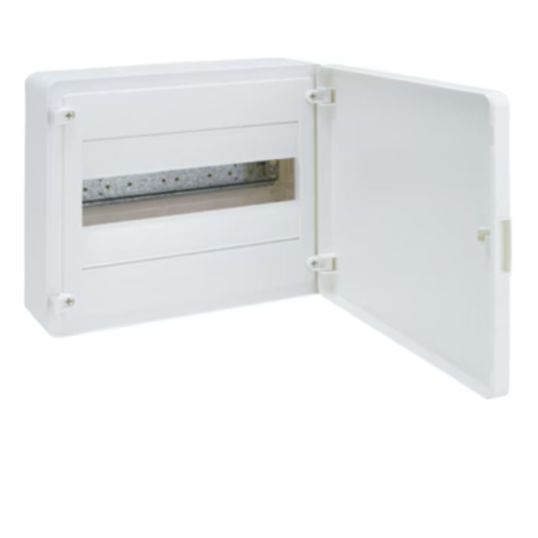

Hager 12 Pole Switchboard Enclosure Surface Mount 400 Volt 80 Amp Plastic Opaque Door

$Hager\Hager_VS112PT.JPG$

Description

Switchboard Enclosure, 400 V, 80 Amp, 1 Rows, 12 Modules, IP40, Surface, Plastic, White,-25 to 40 deg C, 251.5mm Height x 281.5mm Width x 98.5mm Depth, Opaque Door

Key Specifications

Barcode (EAN-13)	3250616594388
SKU	HAGVS112PT
Brand	Hager
Range Name	Golf
Product Type	Switchboard Kits & Enclosures

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Opaque or transparent door for devices up to 70mm installation depth Door opens up to 180 deg and can be fitted on right or left, with optional lock and keys Wall box and cover are symmetrical for removable cable entry slider Cable entries for cable and conduit Earth & neutral terminals Pole fillers Patented marking system Cable management clips Transport protection film Busbar supplied with some references
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	VS112PT
Colour	White
Dimensions	251.5mm Height x 281.5mm Width x 98.5mm Depth
Current	80 Amp
IP Rating	IP40
Modules	12 Module
Material	Plastic
Number of Rows	1 Row
Please Note	Opaque Door
Mounting Method	Surface
Temperature	-25 to 40 deg C
Voltage	400 Volt
