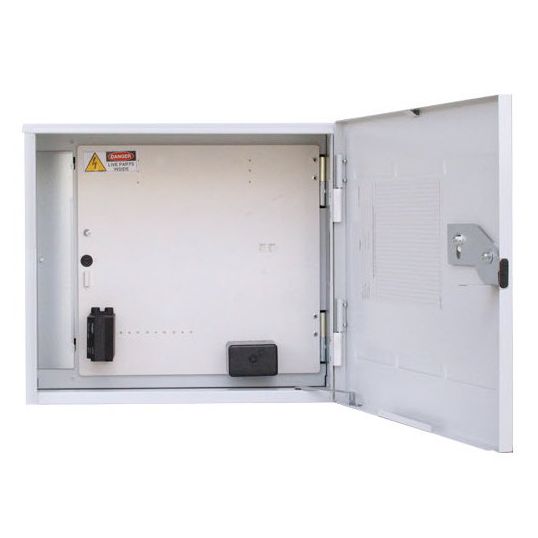

Hager Meter Box Victoria W488mm H430mm D276mm Steel Galvanised

Description

Meter Box Victoria, Service Facilities: Meter Only No Din Sect., 430mm Height, 488mm Width, 276mm Depth, 400mm Panel Height, 380mm Panel Width, Fixed Removable Door, Padlock Lock, Steel, Galvanised

Key Specifications

Barcode (EAN-13)	3250611005353
SKU	HAGVYMBV-P
Brand	Hager
Product Type	Meter Boxes Domestic

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1.2 mtr galvanised steel powder coated RAL 276mm deep (75mm behind panel) Flush door opening mechanism Full UV stable cable entry cover Rear Z rails suitable for mounting on existing market poles Knockout for padlock tab Gravity door catch Strong 1.6mm steel hinges KM06A Meter N Link supplied (Netec) Left side consumer duct
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	VYMBV-P
Door Type	Fixed Removable
Enclosure Depth	276mm
Enclosure Height	430mm
Enclosure Width	488mm
Finish	Galvanised
Lock Type	Padlock
Material	Steel
Panel Height	400mm
Panel Width	380mm
Service Facilities	Meter Only No Din Sect.
