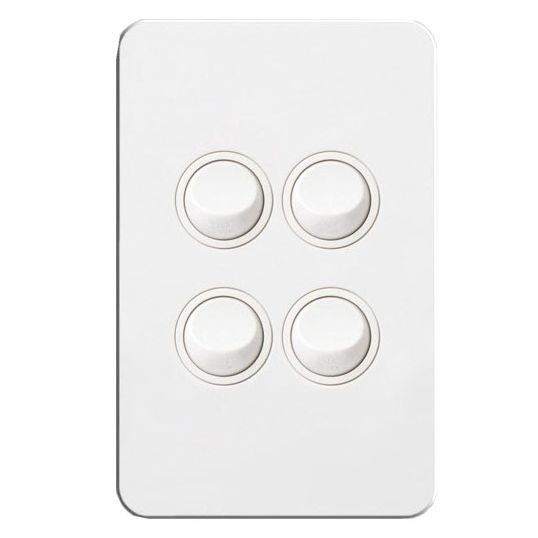

Hager Silhouette Switch Flush Mount Rocker Standard 4 Gang 16A AX 250V 2 Way Vertical White

Description

Switch, 250 Volt Switch, 16 Amp, 50 Hz, 4 Gang, 2 Way, Button Actuator, Screw Connection, Loop Terminal, 4 x 1.5 sq-mm Terminal Capacity, Vertical Orientation, IP20, Flush Mounting, Polycarbonate, White, Glossy, 117 mm Height, 77 mm Width, 23 mm Depth, With Loop Terminal

Key Specifications

Barcode (EAN-13)	3250617580779
SKU	HAGWBSSV4
Brand	Hager
Range Name	Silhouette
Product Type	Switches Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Rocker features in-built arc shield and chemical resistant pivots All plates fitted with 16AX mechanisms suitable for fluorescent loads 2 way and loop terminal as standard Combination head screws Phillips number 1 backed off for ease of cable insertion Terminals accommodate 4 x 1.5 sq-mm cable Multiple mounting holes No mechanism push back
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	WBSSV4
Actuator Type	Button
Colour	White
Connection Type	Screw
Current	16 Amp
Depth	23 mm
Finish	Gloss
Frequency	50 Hz
Height	117 mm
IP Rating	IP20
Material	Polycarbonate
Mounting Method	Flush
Number Of Gangs	4 Gang
Number Of Ways	2
Orientation	Vertical
Please Note	with Loop Terminal
Terminal Capacity	4 x 1.5 sq-mm
Terminal Type	Loop
Width	77 mm
