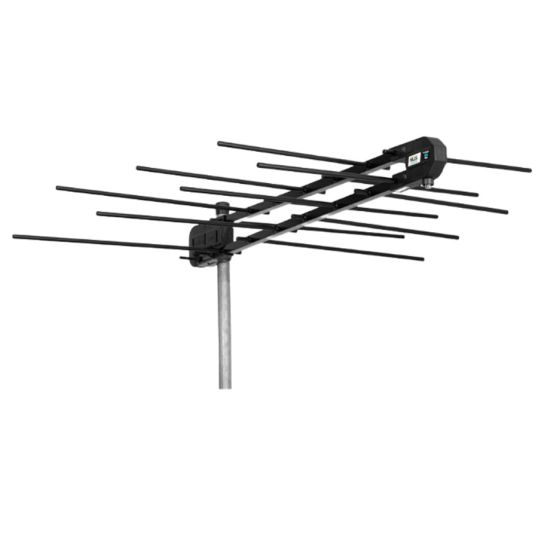

Hills Antenna Log Periodic TV Antenna 6-12 VHF 6-8 dBi VHF 5 Ele F-Type

chevron-left
loader
Loading...

Description

chevron-down
Hills Antenna 01TBV7-4G Tru-Band 7-Element VHF Black Arrow 4G Antenna range is a revolutionary range of antennas specifically designed for the digital-only TV environment in Australian Capital Cities and certain regional areas serviced by VHF transmitters. The Tru-Band Black Arrow is the Gold Standard, providing the gain required for all prime locations, and is built to deliver a lifetime of trouble-free viewing. This new edition of the Tru-Band Antenna now features an individually tuned and optimised RF filter circuit. Specifically designed with shielded inductors, to better withstand any potential 4G/5G transmission interference from the growing number of mobile towers. The Black Arrow was designed with your home in mind. Combining it’s sleek black design with prime reception qualities, this model will ensure you receive the picture you deserve, without compromising the aesthetic of your home. The antenna’s black finish allows it to blends in and becomes unnoticeable on the roof making it a must for all modern homes. Designed, Owned & Tested in Australia with unmatched quality and a Lifetime Warranty, you simply cannot go wrong with this antenna. It is suitable for both domestic and commercial applications. For the best look, combine with the BC2844-BLK Black Tripod Mount or FB602406B Black Fascia Bracket

Key Specifications

chevron-down
Barcode (EAN-13)
9340591018444
SKU
HIA01TBV7-4G
Brand
Hills Antenna

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for the precise digital frequency bands for true HD performance
  • Boomlock manufacturing technology developed and patented by Hills
  • Ultrasonically sealed balun prevents water ingress for maximum reliability
  • Matched balun for best MER performance and lowest insertion loss
  • Made from aluminium for superior corrosion resistance
  • Made from aluminium for superior corrosion resistance
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product 01TBV7-4G
Balun Type Ultrasonically Sealed
Channels 6-12 VHF
Connector Type F-Type
Dimensions 820 mm Length x 850 mm Width x 85 mm Height
Front to Back Ratio 13-15 dB VHF
Gain (db) 6-8 dBi VHF
For Use With Digital TV
Material Aluminium UV Stabilised Plastic
Number of Elements 5 Elements
