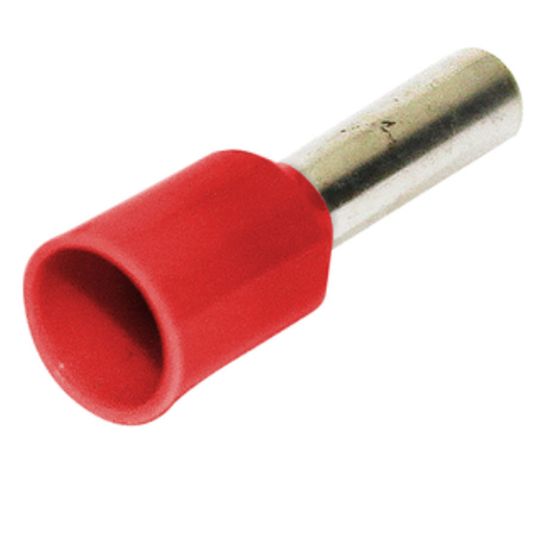

Hellermann Tyton Bootlace Ferrule Insulated Nylon Red 1mm

chevron-left
loader
Loading...

Description

chevron-down
Insulated Bootlace Ferrule, 1 mm, 1 Conductors, 8 mm Pin Length, 1.4 mm Pin Diameter, 3 mm Collar Inside Diameter, 14 mm Overall Length, Electro Grade Copper Sleeve, Nylon Insulation, Red Insulation, Copper Contact, 105 deg C, 100 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9349519000912
SKU
HMYBL1.0
Brand
Hellermann Tyton

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Colour-coded for easier identification
  • Reduces the possibility of short circuiting
  • Packaged in resealable bags
  • REACH compliant
  • Resealable bags
Standard Pack Size 100
UNSPSC Class 39121400
UOM PK
Vendor Product BL1.0
Collar Inside Diameter 3 mm
Contact Material Copper
Conductor Size 1 mm
Insulation Colour Red
Number of Conductors 1
Insulation Material Nylon
Overall Length 14 mm
Pin Length 8 mm
Pack Size 100 Pack
Pin Diameter 1.4 mm
Temperature 105 deg C
Sleeve Material Electro Grade Copper
