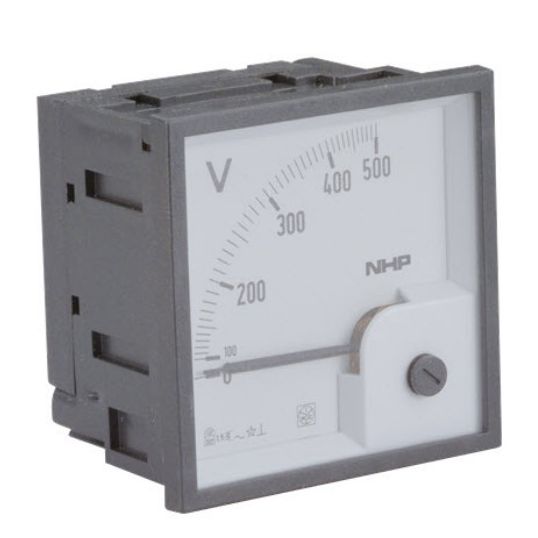

IME AC Voltmeter Analogue Moving Iron Direct Connection 0-300V 90Deg 45mm W Panel Mount

$NHP\NHP_RQ48EVAC.jpg$

Description

AC Voltmeter Analogue Moving Iron, 0 to 300 Volt AC, 600 Volt AC, 50/45-65 Hz, Direct Connection, 90 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 48 mm Height x 48 mm Width, Panel Mount, Polycarbonate, 45 mm Height x 45 mm Width x 75 mm Depth

Key Specifications

Barcode (EAN-13)	9321807024053
SKU	IMERQ48EVAC300V
Brand	IME
Range Name	RQ48
Product Type	Voltmeters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Accuracy class 1.5 IP52 rated front frame
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	RQ48EVAC300V
Depth	75 mm
Display	Analogue
Frame Size	48mm x 48mm
Frequency	50/45-65 Hz
Height	45 mm
Mounting Method	Panel
Operation Form	Direct Connection
Readout Form	90 deg Deflection Accuracy Class 1.5
Scale	0 to 300 Volt AC
Temperature	-25 to 50 deg C
Voltage	600 Volt
Width	45 mm
