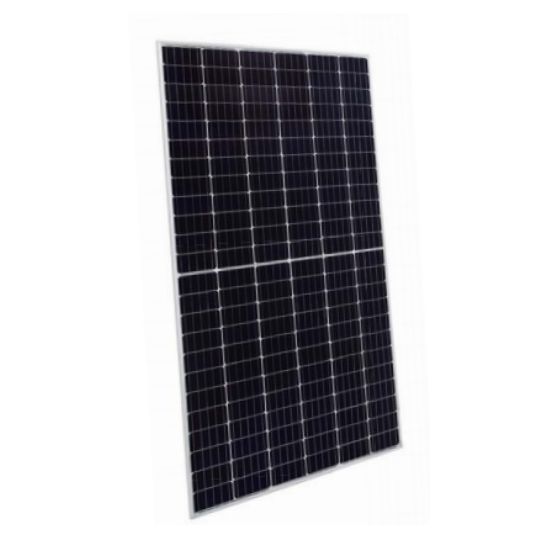

Jinko Solar Eagle HC Solar Panel Half Cell 350W Mono-Crystalline 72 Cells

Description

Solar Panel, Monocrystalline Cell Type, 72 Number of Cells, 350 Watt Max. Power, 39.3 Volt Max. Voltage, 8.91 Amp Max. Current, 47.9 Volt Open Circuit Voltage, 9.23 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 17.76% Module Efficiency, 0 - 3% Power Tolerance, Anode 290 mm, Cathode 145 mm or Customized Length Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.37%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1987 mm ? 992 mm ? 40 mm Dimensions, 22.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications

Key Specifications

SKU	JKM350M-72H
Brand	Jinko Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	5 busbar solar cell High efficiency PID resistant Low-light performance Severe weather resilience Durability against extreme environmental conditions
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM350M-72H
Cell Type	Monocrystalline
Certifications	ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm/High Transmission/Tempered Glass with Anti-Reflection
Item Weight	22.5 kg
Junction Box	IP67
Max. Current	8.91 Amp
Max. Fuse Current	20 Amp
Max. Voltage	39.3 Volt
Max. System Voltage	1000 Volt DC (IEC)
Number Of Cells	72
Open Circuit Voltage	47.9 Volt
Operating Temperature	-40 to 85 deg C
Output Cables	Anode 290 mm/Cathode 145 mm
Power Tolerance	0-3%
Short Circuit Current	9.23 Amp
Temperature Coefficient	0.37%/deg C
Wattage	350 Watt
