Jinko Solar Solar Panel 475W Monocrystalline 120 Cells 35.88V 13.24A Anodized Aluminum Alloy Black N-Type 43.45V 13.77A

Name: Solar Panel 475W Monocrystalline 120 Cells 35.88V 13.24A
SKU: JKM475N-60HL4-v
Availability: InStock

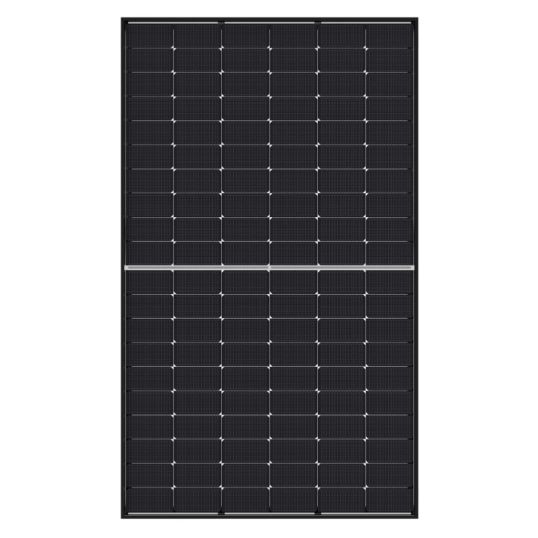

$Jinko_Solar\JinkoSolar_JKM475N-60HL4-V.JPG$

Description

Solar Panel, N-Type Model, Monocrystalline Cell, 120, 475 Watt, 35.88 Volt Maximum, 13.24 Amp Maximum, 43.45 Volt Open Circuit, 13.77 Amp Short Circuit, 25 Amp Max. Fuse, 1000/1500 Volt DC Max. System, 21.98% Efficiency, 0-3% Power Tolerance, JK03M, JK03M2, Others Connector, IP68 Junction Box

Key Specifications

SKU	JKM475N-60HL4-v
Brand	Jinko Solar
Range Name	Tiger Neo N Type
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	N-type Technology-N-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance Durability Against Extreme Environment-High salt mist and ammonia resistance. HOT 3.0 Technology-N-type modules with JinkoSolar's HOT3.0 technology offer better reliability andefficiency. Mechanical Load Enhanced- Certified to withstand:5400 Pa front side max static test load2400 Pa rear side max static test load SMBB Technology-Better light trapping and current collectionto improve module power output andreliability Anti-PID Guarantee-Minimizes the chance of degradation causedby PID phenomena through optimizationof cell production technology and materialcontrol.
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM475N-60HL4-V
Cell Type	Monocrystalline
Frame Construction	Anodized Aluminium Alloy Black
Model	N-Type
Number Of Cells	120
Power Tolerance	0-3%
Height	30 mm
Width	1134 mm
Efficiency	21.98%
Connector Type	JK03M / JK03M2 / Others
Operating Temperature	-40 to 85 deg C
Front Glass	3.2 mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Junction Box	IP68
Max. Fuse Current	25 Amp
Max. System Voltage	1000/1500 Volt DC
Output Cables	4 sq-mm (+): 400 mm , (-): 200 mm
Temperature Coefficient	-0.29%/ deg C
Wattage	475 Watt
Certifications	IEC61215:2016 / IEC617302:016 / ISO9001:2015 / ISO14001:2015 / ISO45001:2018
Item Weight	22.5 kg
Warranty	12 Years Product / 30 Year Linear Power
