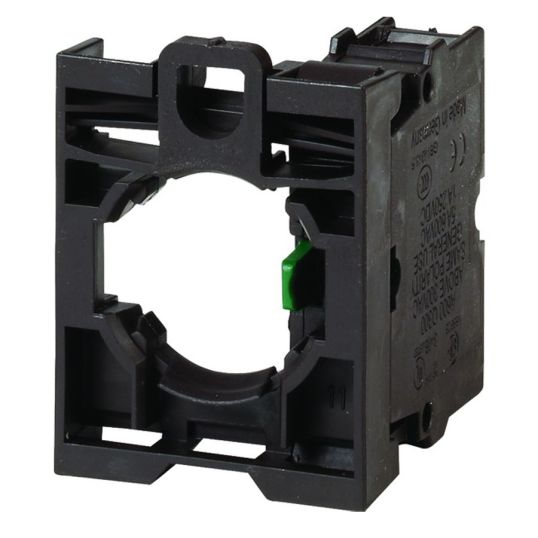

Eaton Moeller Operator Contact Block With Screw Terminals 1N.O Front/Top Mount

$Eaton\Eaton_M22-AK10.JPG$

Description

Pushbutton Operator Contact Block, 6 Amp AC15, 1 Normally Opened Configuration, Screw Terminal, Front/Top Mounting, IP20, -25 to 70 deg C, 30 mm Height, 40 mm Width, 35 mm Depth

Key Specifications

SKU	KLOM22-AK10
Brand	Eaton Moeller
Range Name	RMQ Titan

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	M22-AK10
Contact Configuration	1 Normally Opened
Current	6 Amp AC15
Depth	35 mm
Height	30 mm
IP Rating	IP20
Mounting Method	Front/Top
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Width	40 mm
