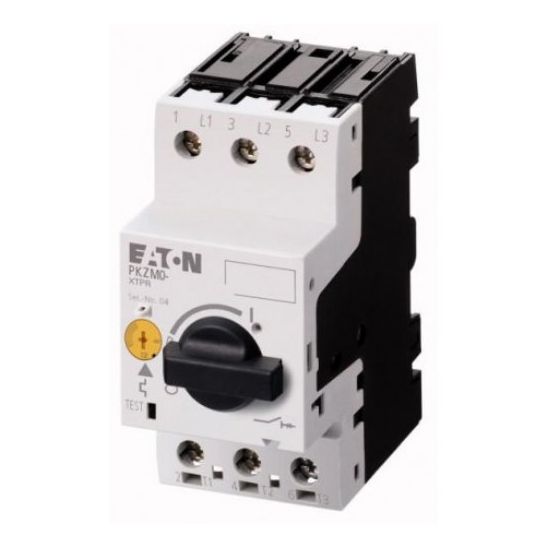

Eaton Moeller Integrated Motor Starter Protector 3P 2.5A 1.6-2.5A 50 kA
Loading...
Description
Integrated Motor Starter Protector, 3 Pole, 690 Volt AC, 2.5 Amp, 0.75 kW, 3 Phase, Setting Range: 1.6-2.5 Amp, Interrupt Capacity: 50 kA, 76 mm Length, 45 mm Width, 93 mm Height
Key Specifications
| Barcode (EAN-13) |
9323952180943
|
|---|---|
| SKU |
KLOPKZM0-2.5
|
| Brand |
Eaton Moeller
|
| Range Name |
PKZM
|
| Product Type |
Motor Starters Integrated
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | PKZM0-2-5 |
| Height | 93 mm |
| Interrupt Capacity | 50 kA |
| Current | 2.5 Amp |
| Number Of Poles | 3 Pole |
| Phase | 3 Phase |
| Setting Range | 1.6-2.5 Amp |
| Wattage | 0.75 kW |
| Voltage | 690 Volt AC |
| Width | 45 mm |
