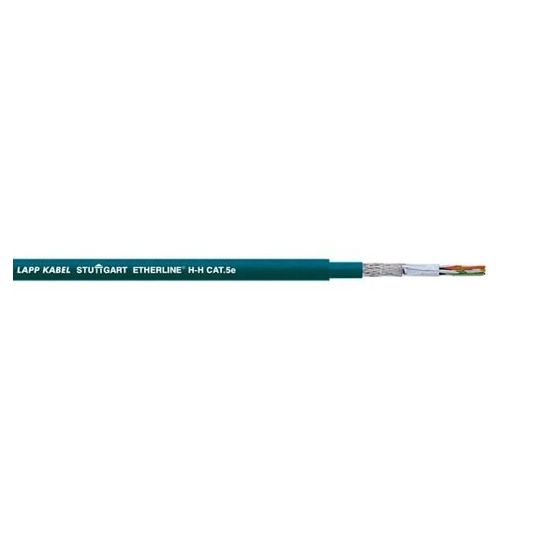

Lapp Kabel Etherline H Data Cable Cat5e 4 Pair Screened 2x24AWG Foam/Halogen Free Water Blue Bare Copper

$Lapp_Kabel\Lapp_Kabel_2170296.jpg$

Description

CAT 5e Data Cable, 125 Volt, Solid, 2 x 24 AWG, Cat 5e, 4 Pair, 50.4 mm Static Bend Radius, Bare Copper Conductor, Foam Insulation, Plastic Laminated Aluminium Foil Screen, Halogen Free Sheath, Blue Sheath, 6.3 mm Outside Diameter

Key Specifications

SKU	LAP2170296
Brand	Lapp Kabel
Range Name	Etherline H

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High quality double screening ensures high transmission reliability in areas with electromagnetic interference PUR outer sheath is highly resistant to mineral oil and abrasion Halogen free outer sheath
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	2170296
Bend Radius	50.4 mm Static
Cable Type	Cat 5e
Conductor Material	Bare Copper
Conductor Size	2 x 24 AWG
Conductor Type	Solid
Insulation Material	Foam
Outside Diameter	6.3 mm
Pair Count	4 Pair
Screen Material	Plastic Laminated Aluminium Foil
Sheath Material	Halogen Free
Sheath Colour	Blue
Voltage	125 Volt
