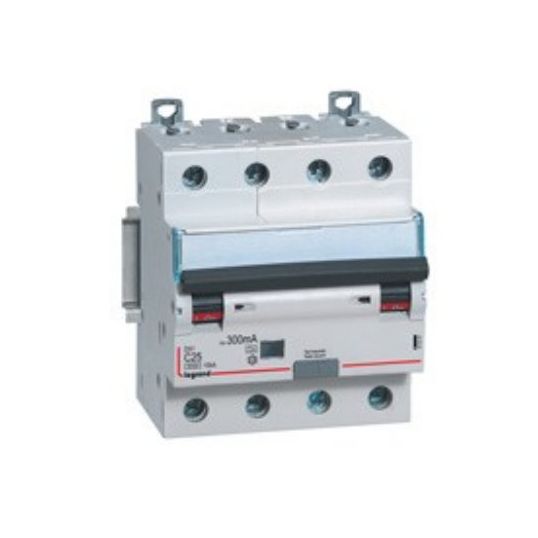

Legrand Combination RCD Circuit Breaker RCBO 4Pole 25 Amp 230/400V 10 kA 4Module 72mm DIN 35 Rail

Description

Combination RCD Circuit Breaker RCBO, 230-400 Volt, 25 Amp, 50 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 4 Pole, 4 Module 72 mm, 2 x 0.75-16 sq-mm Flexible/1 x 0.75-35 Rigid Terminal, Cage/Captive Screw Connection, IP20/40, DIN Rail Mounting, 25 to 60 deg C, 83 mm Height, 71.2 mm Width, 78.05 mm Depth

Key Specifications

Barcode (EAN-13)	3245064112369
SKU	LEG411236
Brand	Legrand
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	411236
Current	25 Amp
Connection Type	Cage/Captive Screw
Depth	78.05 mm
Height	83 mm
Frequency	50 Hz
IP Rating	IP20/40
Interrupt Capacity	10 kA
Modules	4 Module 72 mm
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Terminal Connection	2 x 0.75-16 sq-mm Flexible / 1 x 0.75-35 Rigid
Temperature	25 to 60 deg C
Trip Characteristic	C Curve
Voltage	230-400 Volt
Trip Sensitivity	30 mA
Width	71.2 mm
