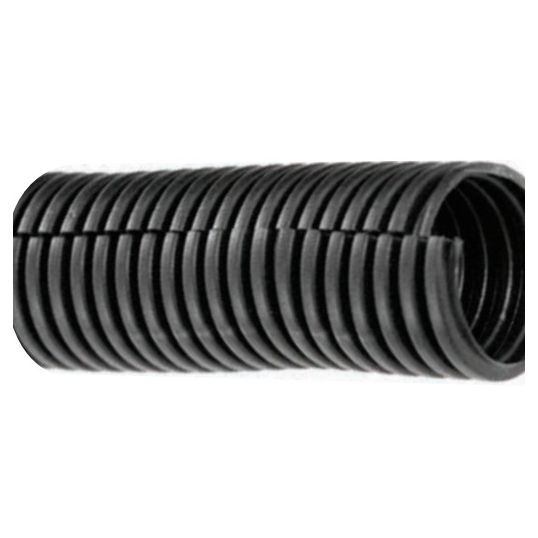

Liquatite Flexible Conduit Loom Tube Split 16mm 25M Black

chevron-left
loader
Loading...

Description

chevron-down
Flexible Conduit, Loom Tube, Split, 16 mm, 16.3 mm ID, 20.9 mm OD, 25 mtr, Black Sheath, -20 to 90 deg C

Key Specifications

chevron-down
SKU
LIQLTUBE16-25
Brand
Liquidtight
Product Type
Flex Conduit Split

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Loom tube is a simple way to create a harness from loose wires
  • The corrugated tubing is pre split along the length, and wires are slipped into the center of the tube, available for break out at any point along the length of the tube
  • Self recovering
  • Flame resistant
  • UV stabilised
  • Chemical resistance to oils and solvents
  • Ease of retrofit installation
  • Flammability rating HB or V2
Standard Pack Size 25
UNSPSC Class 39131700
UOM MTR
Vendor Product LTUBE16-25
Conduit Size 16 mm
Inside Diameter 16.3mm
Outside Diameter 20.9mm
Sheath Colour Black
Temperature -20 to 90 deg C
