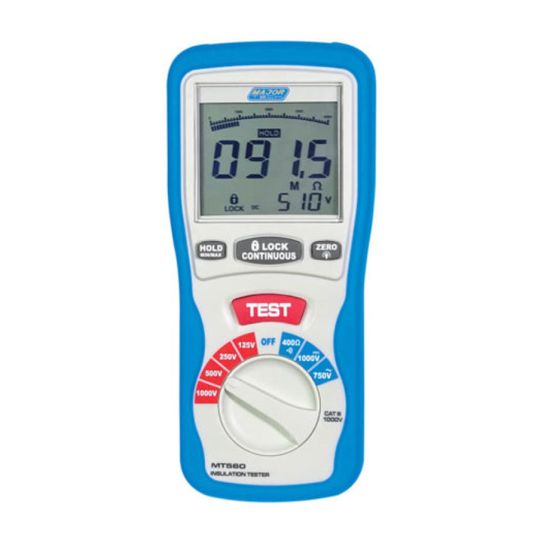

Major Tech Digital Insulation Tester 125/250/500/1000V ACV DCV

chevron-left
loader
Loading...

Description

chevron-down
Digitalinsulation Tester, DC: 0-1000 Volt, AC: 0-750 Volt, 40-400 Ohm Resistance, 6 x AA Battery, Dual LCD Display, Double Moulded Enclosure, 200mm x 92mm x 50mm, IEC 61010-1 CAT IV 600V

Key Specifications

chevron-down
Barcode (EAN-13)
6008229018190
SKU
MAJMT560
Brand
Major Tech

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 4 test ranges 125V-250V-500V-1000V
  • Min/Max recording mode
  • Measures AC voltage to 750V and DC voltage to 1000V
  • Large dual LCD display with bargraph
  • Live circuit detection prevents insulation tests if voltage >30V
  • Auto null of test lead resistance
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Continuity buzzer
  • Automatic discharge of capacitive voltage after test for added protection
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product MT560
Dimensions 200mm x 92mm x 50mm
Display Type Dual LCD
Power Supply 6 x AA
Product Type simple
Resistance 40/400 Ohm
Voltage 0-1000 Volt DC/0-750 Volt AC
