Matchmaster TV Antenna VHF 6-12 Channel 4 Element VHF 7dB Gain F-Type Connector

$Matchmaster\Matchmaster_03MM-DR3004.jpg$

Description

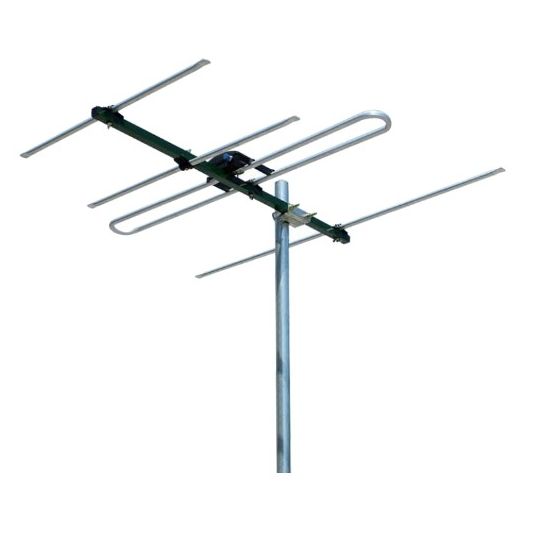

The 03MM-DR3004 is a four-element VHF Yagi-style antenna receiving channels 6-12 with a maximum gain of 7dB. The antenna features a 4G/5G LTE filter built in to help eliminate interference and deliver the best possible pictures for viewing. With the elements constructed from heavy-duty 12.7mm extruded aluminium tube, the DR3004 is well designed to handle the harsh Australian environment. The DR3004 is suited for high signal and metro band three reception areas, including the reception of DAB+ radio services.

Key Specifications

Barcode (EAN-13)	9322190011040
SKU	MAT03MM-DR3004
Brand	Matchmaster
Product Type	TV Antennas

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4 element VHF yagi antenna Receives channels 6-12 4G/5G LTE 652MHz low pass filter 12.7mm heavy-duty extruded elements for maximum strength and durability 7.0dB maximum gain Snap lock design for fast installation
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	03MM-DR3004
Boom Size	795 mm Length x 25 mm x 19 mm
Channels	6-12 VHF
Connector Type	F-Type
For Use With	TV
Frequency	652 MHz
Front to Back Ratio	16.8 dB
Number of Elements	4 Elements
