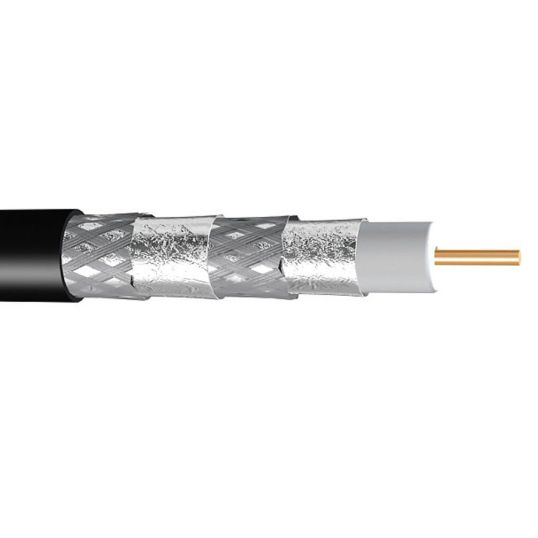

Matchmaster Digimatch RG6 Coaxial Cable Quad Shield 1.02mm PVC Black 305M

Description

RG6 Coaxial Cable Quad Shield, Inner: 1.02 +/-0.01mm, Outer: 4.78 +/-0.13mm Conductor Diameter, Bend Radius: Single: 35mm, Typical: 70mm, Adhesion Force: >20 N, Pulling Tension: 200 N, Insulation Resistance: >1x10 power of 4 MOhm.km, Capacitance: 54 pF/mtr, 75 +/-3 Ohm Impedance, Al-Mg Alloy Wire Braid, Physically Foamed PE Insulation, Fire Resistant PVC or PVC Sheath, Non-Bonded Aluminium/PET/Aluminium Tape Screen, Black Sheath, 7.54 +/-0.2mm Overall Diameter, 305 mtr Length,-40 to 70 deg C

Key Specifications

Barcode (EAN-13)	9322190008569
SKU	MAT06MM-E6Q
Brand	Matchmaster
Product Type	Quad Shield Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	An RG6 metre marked cable with quadshielding Suitable and approved for Pay and Digital TV
Standard Pack Size	305
UNSPSC Class	26121600
UOM	RL
Vendor Product	06MM-E6Q
Braid Material	Al-Mg Alloy Wire
Bend Radius	Single: 35mm/Typical: 70mm
Capacitance	54 pF/mtr
Conductor Diameter	Inner: 1.02 +/-0.01mm/Outer: 4.78 +/-0.13mm
Insulation Material	Physically Foamed PE
Insulation Resistance	>1x10 power of 4 MOhm.km
Overall Diameter	7.54 +/-0.2mm
Screen Material	Non-Bonded Aluminium/PET/Aluminium Tape
Pulling Tension	200 N
Sheath Colour	Black
Sheath Material	Fire Resistant PVC
Temperature	-40 to 70 deg C
