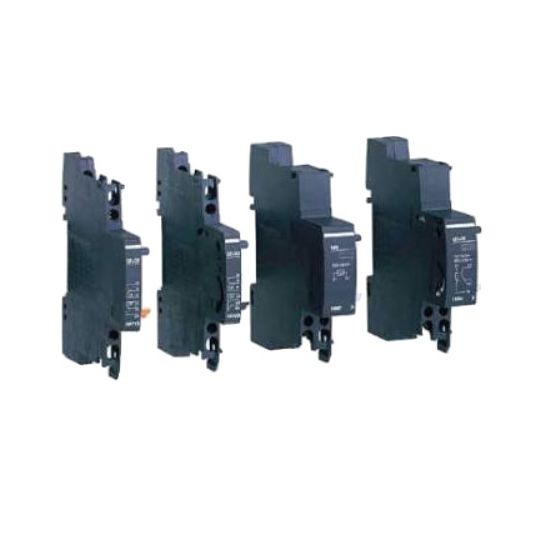

Schneider Voltage Release 3 Amp at >= 240 VAC 6 Amp at < 240 VAC 1 Amp at 130 VDC 2 Amp at <= 48 VDC DIN Rail Mount IP20

$Schneider\Schneider_NG125.jpg$

Description

Voltage Release, 1-6 Amp, 230 to 415 Volt AC 50/60 Hz, 110 to 130 Volt DC, 1 C/O, Plate Terminal Connection, 35mm Symmetrical DIN Rail, IP20 B, IP4 Conforming to EN/IEC 60947-5-1,-25 to 60 deg C, 106mm Height, 33mm Width, 78mm Depth, For Use With: Vigi NG125/Acti 9 NG125LMA Monitoring and Control of Protection

Key Specifications

Barcode (EAN-13)	3303430190646
SKU	MEG19064
Brand	Schneider

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	19064
Current	1-6 Amp
Contact Configuration	1 Changeover
For Use With	Vigi NG125/Acti 9 NG125LMA Monitoring and Control of Protection
Height	106mm
Depth	78mm
IP Rating	IP20 B/4
Mounting Method	DIN Rail
Temperature	-25 to 60 deg C
Product Type	simple
Width	33mm
Voltage	230-415 Volt AC/110-130 Volt DC
Terminal Connection	Plate
