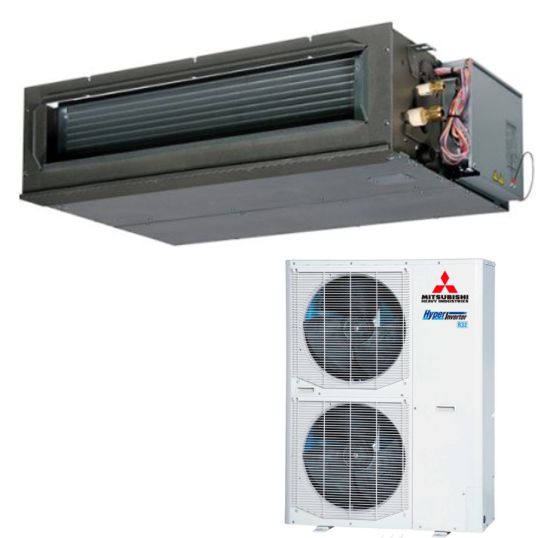

Mitsubishi FDU Series Ducted Air Conditioner Set High Static Pressure Cooling:14kW Heating:16kW R32 3 Phase

chevron-left
loader
Loading...

Description

chevron-down
Ducted Air Conditioner Set, 14 kW Cooling, 16 kW, 15.5 kW Heating Capacity, 6.7 Amp Rated Current (Cooling), 6.8 Amp Rated Current (Heating), Cooling Air Flow Rate: High: 583 l/sec, Medium: 467 l/sec, Low: 367 l/sec, Heating Air Flow Rate: High: 583 l/sec, Medium: 467 l/sec, Low: 367 l/sec, R32 Refrigerant, Indoor: High: 40 dBA, Med: 35 dBA, Low: 30 dBA, Outdoor: 54 dBA, 3 Phase 380-415 Volt 50 Hz, Cooling: 4.22 kW, Heating: 4.22 kW, 280mm Height ? 1370mm Width ? 740mm Depth Indoor, 1300mm Height x 970mm Width x 370mm Depth Outdoor

Key Specifications

chevron-down
SKU
MHIFDU140AVSXWVH
Brand
Mitsubishi Heavy Industries
Product Type
Ducted Air Conditioning

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 3 Phase model
  • External Static Pressure control
  • Self-diagnostics function
  • Weekly /Sleep timer
  • 600mm built-in drain pump
Standard Pack Size 1
UNSPSC Class 40101700
UOM EA
Vendor Product FDU140AVSXWVH
Cooling Air Flow Rate Hi: 583 l/sec Med: 467 l/sec Low: 367 l/sec
Cooling Capacity 14 kW
Heating Air Flow Rate Hi: 583 l/sec Med: 467 l/sec Low: 367 l/sec
Heating Capacity 16 kW/15.5 kW
Indoor Dimensions 280 mm Height ? 1370 mm Width ? 740 mm Depth
Outdoor Dimensions 1300 mm Height x 970 mm Width x 370 mm Depth
Power Supply 3 Phase 380-415 Volt 50 Hz
Rated Current (Cooling) 6.7 Amp
Sound Level Indoor: High-40 dBA/Med-35 dBA/Low-30 dBA Outdoor: 54 dBA
Rated Current (Heating) 6.8 Amp
Refrigerant Type R32
