Molex PowerCat Cat6A U/FTP Underground Cable 0.5mm 4 Pair U/FTP HDPE Inner Nylon Outer Sheath 305m

$Molex\Molex_CAA-00418-BL.jpg$

Description

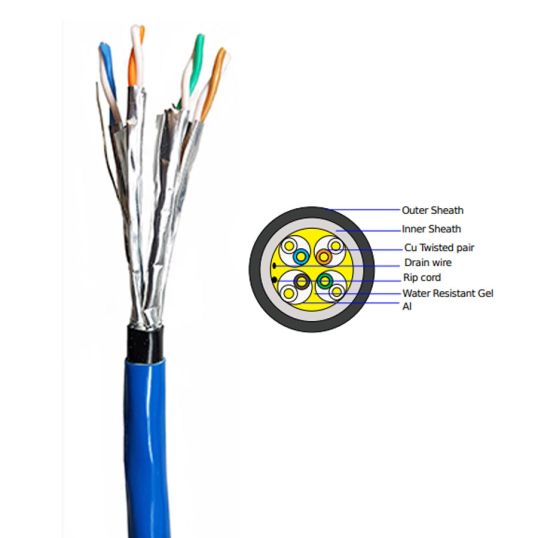

Cat6A U/FTP Underground Cable, Solid Bare Conductor, 0.5mm, 50 N/sq-m Max. Pulling Force, 4 Pair, U/FTP, 500 MHz Bandwidth, Cat6A, Copper Conductor, Gel Filled Filler, HDPE Insulation, Inner: HDPE, Outer: Nylon Sheath, Operating:-20 to 75 deg C, 305 mtr Length, 8.3 +/-1mm Outside Diameter

Key Specifications

SKU	MODCAA-00418-BL
Brand	Molex
Product Type	Cat6A Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Category 6A compliant PE (UV) and nylon sheathed for greater protection UV resistant Outer Sheath Suitable for outdoor/underground Installations Water resistant gel
Standard Pack Size	1
UNSPSC Class	26121600
UOM	RO
Vendor Product	CAA-00418-BL
Cable Type	Cat6A
Conductor Material	Copper
Conductor Size	0.5mm
Conductor Type	Solid Bare
Filler Material	Gel Filled
Frequency Bandwidth	500 MHz
Insulation Material	HDPE
Max. Pulling Force	50 N/sq-m
Outside Diameter	8.3 +/-1 mm
Pair Count	4 Pair
Sheath Material	Inner: HDPE/Outer: Nylon
Shielded Type	U/FTP
Temperature	Operating:-20 to 75 deg C
