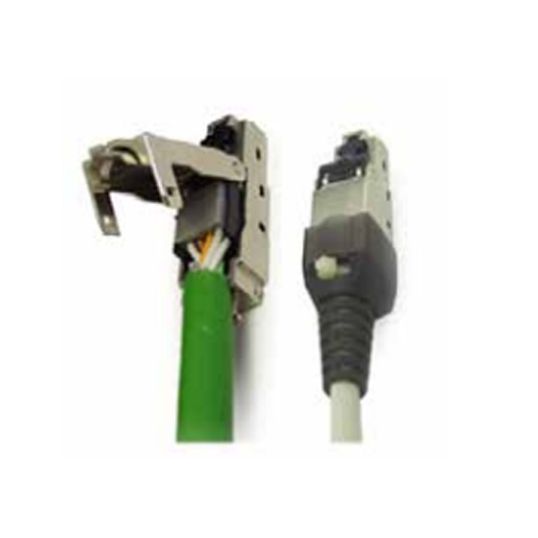

Molex Field Terminated Plug CAT6A RJ45

$Molex\Molex_KSP-00001.jpg$

Description

Field Terminated Plug, 1.5 Amp, Solid/Stranded, Solid: 22-26 AWG, Stranded: 22-27 AWG, RJ45 Connector, 20 mOhm max Contact Resistance, 500 MOhm/min Insulation Resistance, CAT6A, TIA 568A/B & PNO Wiring Scheme, Zinc Alloy Housing

Key Specifications

SKU	MODKSP-00001
Brand	Molex

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Supports 10gb networks Designed to accommodate conductors from 22 AWG-26 AWG IP 20 rating; TIA-568-C.2 Cat 6A MPTL compliant; Backward compatible with C6/C5e MPTL UL approved Ideal for wireless access points and IP-enabled devices, data centers and premise network applications POE+ Compliant Tool-free, no punch down tool required RoHS compliant Plug to plug not supported
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	KSP-00001
Cable Type	CAT6A
Conductor Type	Solid/Stranded
Conductor Size	Solid: 22-26 AWG/Stranded: 22-27 AWG
Connector Type	RJ45
Housing Material	Zinc Alloy
